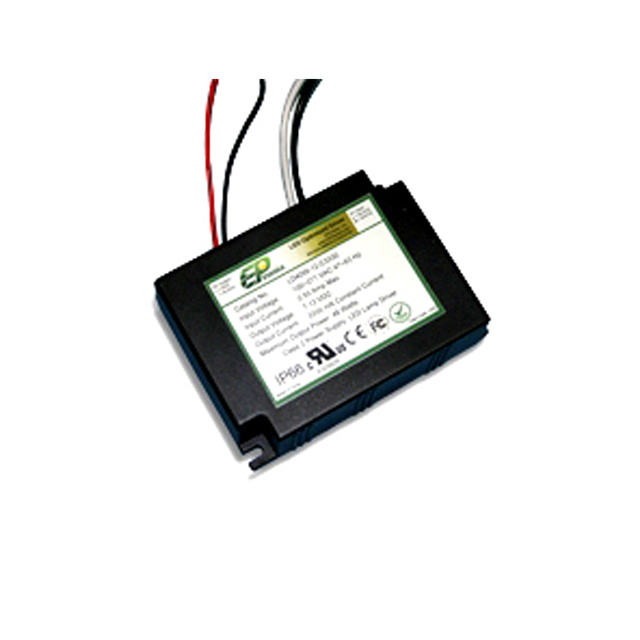

LD40W-24

Active

EPtronics, Inc.

CV 24V@418~1670MA, NON-DIMMING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LD40W-24

Active

EPtronics, Inc.

CV 24V@418~1670MA, NON-DIMMING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.76
		5	$ 31.78
		10	$ 30.82
		25	$ 29.90
		50	$ 29.00
		100	$ 28.13

Description

General part information

LD40W Series

1.67A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LD40W-24	LD40W Series

Approval Agency	CE, FCC, cURus	CE, FCC, cURus
Current - Output (Max) [Max]	1.67 A	1.3 - 900 mA
Dimming	Non-Dimmable	Analog, PWM, Non-Dimmable
Dimming	-	10 V
Dimming	-	0 V
Efficiency	85 %	83 - 87 %
Features	SCP, OCP, OVP	SCP, OCP, OVP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-30 ░C	-40 - -30 ░C
Power (Watts)	40 W	40 W
Ratings	IP66	IP66
Size / Dimension [x]	96 mm	96 mm
Size / Dimension [x]	3.78 "	3.78 "
Size / Dimension [y]	71.1 mm	71.1 mm
Size / Dimension [y]	2.8 in	2.8 in
Size / Dimension [z]	1.26 in	1.26 in
Size / Dimension [z]	32 mm	32 mm
Standard Number	C22.2, UL 8750	C22.2, UL 8750
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Voltage	Constant Current, Constant Voltage
Voltage - Input (Max)	-	132 VAC
Voltage - Input (Max) [Max]	305 VAC	305 VAC
Voltage - Input (Min) [Min]	90 VAC	90 - 108 VAC
Voltage - Isolation	3750 V	2500 - 3750 V
Voltage - Output	24 V	12 - 24 V
Voltage - Output	-	3 - 65 V
Voltage - Output	-	9 - 130 V
Weight	314.7 g	314.7 g
Weight	0.694 lb	0.694 lb

LD40W Series

LED DRIVER AC/DC CC 24-72V 550MA

Part	Approval Agency	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Dimming	Topology	Features	Type	Voltage - Output [Min]	Voltage - Output [Max]	Ratings	Number of Outputs	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Efficiency	Termination Style	Voltage - Input (Min) [Min]	Power (Watts)	Standard Number	Weight	Weight	Dimming [Max] [custom]	Dimming [Min] [custom]	Voltage - Output
EPtronics, Inc. LD40W-72-C0550	CE, cURus, FCC	3750 V	96 mm	71.1 mm	3.78 "	1.26 in	2.8 in	32 mm	550 mA	Analog, PWM	AC DC Converter	OCP, OVP, SCP	Constant Current	24 V	72 V	IP66	1	305 VAC	-30 ░C	60 °C	Chassis Mount	85 %	Wire Leads	90 VAC	40 W
EPtronics, Inc. LD40W-54-C0700-RD	CE, cURus, FCC	3750 V	96 mm	71.1 mm	3.78 "	1.26 in	2.8 in	32 mm	700 mA	Analog, PWM	AC DC Converter	OCP, OVP, SCP	Constant Current	18 V	54 V	IP66	1	305 VAC	-30 ░C	60 °C	Chassis Mount	85 %	Wire Leads	90 VAC	40 W
EPtronics, Inc. LD40W-24-C1400-RD	CE, cURus, FCC	3750 V	96 mm	71.1 mm	3.78 "	1.26 in	2.8 in	32 mm	1.4 A	Analog, PWM	AC DC Converter	OCP, OVP, SCP	Constant Current	8 V	24 V	IP66	1	305 VAC	-30 ░C	60 °C	Chassis Mount	85 %	Wire Leads	90 VAC	40 W
EPtronics, Inc. LD40W-45-C0900-RD	CE, cURus, FCC	2500 V	96 mm	71.1 mm	3.78 "	1.26 in	2.8 in	32 mm	900 mA		AC DC Converter	OCP, OVP, SCP	Constant Current	23 V	45 V	IP66	1	305 VAC	-40 °C	60 °C	Chassis Mount	85 %	Wire Leads	100 VAC	40 W	C22.2, UL 8750	314.7 g	0.694 lb	10 V	0 V
EPtronics, Inc. LD40W-24	CE, cURus, FCC	3750 V	96 mm	71.1 mm	3.78 "	1.26 in	2.8 in	32 mm	1.67 A	Non-Dimmable	AC DC Converter	OCP, OVP, SCP	Constant Voltage			IP66	1	305 VAC	-30 ░C	60 °C	Chassis Mount	85 %	Wire Leads	90 VAC	40 W	C22.2, UL 8750	314.7 g	0.694 lb			24 V
EPtronics, Inc. LD40W-54-C0700	CE, cURus, FCC	3750 V	96 mm	71.1 mm	3.78 "	1.26 in	2.8 in	32 mm	700 mA	Analog, PWM	AC DC Converter	OCP, OVP, SCP	Constant Current	18 V	54 V	IP66	1	305 VAC	-30 ░C	60 °C	Chassis Mount	85 %	Wire Leads	90 VAC	40 W
EPtronics, Inc. LD40W-30-C1400-RD	CE, cURus, FCC	2500 V	96 mm	71.1 mm	3.78 "	1.26 in	2.8 in	32 mm	1.4 A		AC DC Converter	OCP, OVP, SCP	Constant Current	15 V	30 VDC	IP66	1	305 VAC	-40 °C	60 °C	Chassis Mount	85 %	Wire Leads	100 VAC	40 W	C22.2, UL 8750	314.7 g	0.694 lb	10 V	0 V
EPtronics, Inc. LD40W-36-C1100	CE, cURus, FCC	3750 V	96 mm	71.1 mm	3.78 "	1.26 in	2.8 in	32 mm		Analog, PWM	AC DC Converter	OCP, OVP, SCP	Constant Current	12 V	36 V	IP66	1	305 VAC	-30 ░C	60 °C	Chassis Mount	85 %	Wire Leads	90 VAC	40 W
EPtronics, Inc. LD40W-09-C4450-RD	CE, cURus, FCC	3750 V	96 mm	71.1 mm	3.78 "	1.26 in	2.8 in	32 mm	4.45 A	Analog, PWM	AC DC Converter	OCP, OVP, SCP	Constant Current	3 V	9 V	IP66	1	305 VAC	-30 ░C	60 °C	Chassis Mount		Wire Leads	90 VAC	40 W
EPtronics, Inc. LD40W-22-C1820	CE, cURus, FCC	3750 V	96 mm	71.1 mm	3.78 "	1.26 in	2.8 in	32 mm	1.82 A	Analog, PWM	AC DC Converter	OCP, OVP, SCP	Constant Current	7 V	22 V	IP66	1	305 VAC	-30 ░C	60 °C	Chassis Mount	85 %	Wire Leads	90 VAC	40 W
