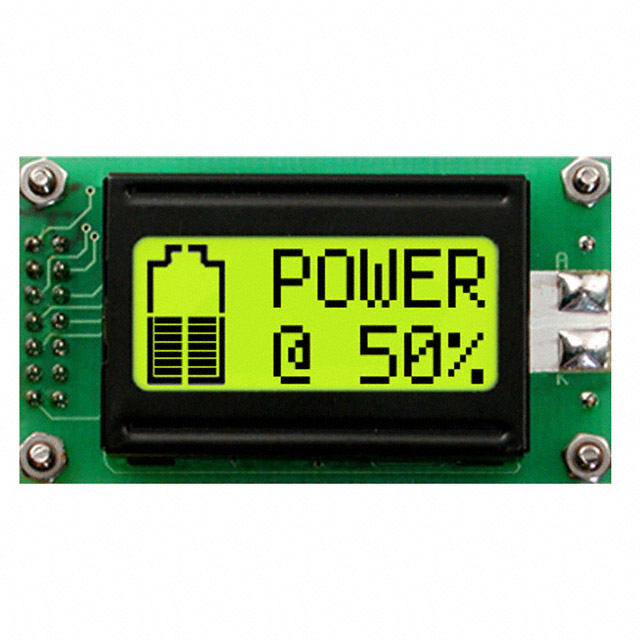

LCD0821-V

Active

Matrix Orbital

LCD MOD 16DIG 8X2 TRANSM YLW/GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCD0821-V

Active

Matrix Orbital

LCD MOD 16DIG 8X2 TRANSM YLW/GRN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCD0821-V

Background Color	Green
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	2.96 mm
Character Size [z]	5.56 mm
Display Format [x]	8
Display Format [y]	2
Display Mode	Transmissive
Display Type	TN - Twisted Nematic
Dot Size [x]	0.56 mm
Dot Size [y]	0.66 mm
Interface	TTL, I2C, RS-232
Number of Characters	16
Outline L x W x H [x]	58 mm
Outline L x W x H [y]	32 mm
Outline L x W x H [z]	26.8 mm
Text Color	Black
Viewing Area [x]	38 mm
Viewing Area [y]	16 mm
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	9 V

LCD0821 Series

Part	Character Format [y]	Character Format [x]	Viewing Area [x]	Viewing Area [y]	Background Color	Display Format [y]	Display Format [x]	Display Mode	Operating Temperature [Min]	Operating Temperature [Max]	Character Size [z]	Character Size [y]	Backlight	Text Color	Dot Size [y]	Dot Size [x]	Number of Characters	Interface	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Matrix Orbital LCD0821-WB-E	8 Dots	5 Dots	38 mm	16 mm	Blue	2	8	Transmissive	-20 C	70 °C	5.56 mm	2.96 mm	LED - Blue	White	0.66 mm	0.56 mm	16	I2C RS-232 TTL	58 mm	32 mm	26.8 mm	TN - Twisted Nematic	4.75 V	5.25 V
Matrix Orbital LCD0821-R	8 Dots	5 Dots	27.8 mm	11.5 mm	Black	2	8				5.56 mm	2.96 mm		Red	0.66 mm	0.56 mm	16	I2C RS-232 TTL	58 mm	32 mm	27.32 mm		4.75 V	5.25 V
Matrix Orbital LCD0821-R-E	8 Dots	5 Dots	27.8 mm	11.5 mm	Black	2	8		-20 C	70 °C	5.56 mm	2.96 mm		Red	0.66 mm	0.56 mm	16	I2C RS-232 TTL	58 mm	32 mm	27.32 mm		4.75 V	5.25 V
Matrix Orbital LCD0821-V	8 Dots	5 Dots	38 mm	16 mm	Green	2	8	Transmissive			5.56 mm	2.96 mm		Black	0.66 mm	0.56 mm	16	I2C RS-232 TTL	58 mm	32 mm	26.8 mm	TN - Twisted Nematic	9 V	15 V
Matrix Orbital LCD0821-R-V-E	8 Dots	5 Dots	27.8 mm	11.5 mm	Black	2	8		-20 C	70 °C	5.56 mm	2.96 mm		Red	0.66 mm	0.56 mm	16	I2C RS-232 TTL	58 mm	32 mm	27.32 mm		9 V	15 V
Matrix Orbital LCD0821-V-E	8 Dots	5 Dots	27.8 mm	11.5 mm	Yellow/Green	2	8		-20 C	70 °C	5.56 mm	2.96 mm		Black	0.66 mm	0.56 mm	16	I2C RS-232 TTL	58 mm	32 mm	27.32 mm		9 V	15 V
Matrix Orbital LCD0821-GW-V-E	8 Dots	5 Dots	27.8 mm	11.5 mm	White	2	8		-20 C	70 °C	5.56 mm	2.96 mm		Gray	0.66 mm	0.56 mm	16	I2C RS-232 TTL	58 mm	32 mm	27.32 mm		9 V	15 V
Matrix Orbital LCD0821-GW-E	8 Dots	5 Dots	27.8 mm	11.5 mm	White	2	8		-20 C	70 °C	5.56 mm	2.96 mm		Gray	0.56 mm	0.56 mm	16	I2C RS-232 TTL	58 mm	32 mm	27.32 mm		4.75 V	5.25 V
Matrix Orbital LCD0821-IY-V	8 Dots	5 Dots	27.8 mm	11.5 mm	Black	2	8				5.56 mm	2.96 mm		Yellow	0.66 mm	0.56 mm	16	I2C RS-232 TTL	58 mm	32 mm	27.32 mm		9 V	15 V
Matrix Orbital LCD0821-WB	8 Dots	5 Dots	27.8 mm	11.5 mm	Blue	2	8				5.56 mm	2.96 mm		White	0.66 mm	0.56 mm	16	I2C RS-232 TTL	58 mm	32 mm	27.32 mm		4.75 V	5.25 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.45
		100	$ 38.58

Description

General part information

LCD0821 Series

Character Display Module Transmissive 5 x 8 Dots TN - Twisted Nematic LED - Yellow/Green I2C, RS-232, TTL 58.00mm x 32.00mm x 26.80mm
