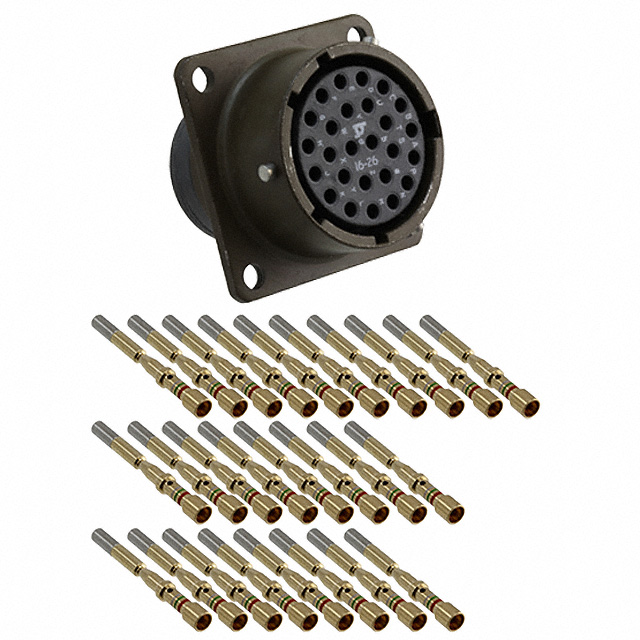

065022-0006 MS
ActiveITT Cannon, LLC
CONN RCPT 26POS BOX MNT W/SCKT
Deep-Dive with AI
Search across all available documentation for this part.
065022-0006 MS
ActiveITT Cannon, LLC
CONN RCPT 26POS BOX MNT W/SCKT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 065022-0006 MS |
|---|---|
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Number of Positions | 26 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 26 |
| Shell Size - Insert [Min] | 16 |
| Termination | Crimp |
| Voltage Rating | 600 VAC, 850 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.20 | |
| 10 | $ 42.40 | |||
| 25 | $ 40.77 | |||
| 50 | $ 39.41 | |||
| 100 | $ 37.24 | |||
| 250 | $ 36.15 | |||
Description
General part information
MS3122E16 Series
26 Position Circular Connector Receptacle, Female Sockets Crimp
