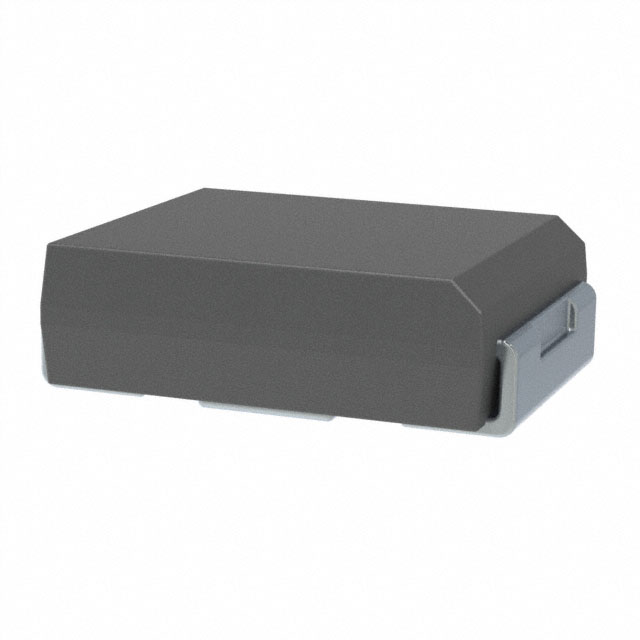

T520T107M2R5AHE070

Active

KEMET

CAP TA POLYMER 100UF 2.5VDC 20% SMD 3528-12 ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN Datasheet +1

T520T107M2R5AHE070

Active

KEMET

CAP TA POLYMER 100UF 2.5VDC 20% SMD 3528-12 ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T520T107M2R5AHE070

Capacitance	100 µF
ESR (Equivalent Series Resistance)	70 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	T
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	2.5 V

T520T Series

Part	Capacitance	Mounting Type	Features	ESR (Equivalent Series Resistance)	Voltage - Rated	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Manufacturer Size Code	Package / Case	Package / Case	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Rated [custom]
KEMET T520T107M2R5AHE070	100 µF	Surface Mount	General Purpose	70 mOhm	2.5 V	0.11 in	2.8 mm	0.138 "	3.5 mm	2000 Hrs	1.2 mm	0.047 in	T	1411	3528 Metric	20 %	105 ░C	-55 °C	Molded
KEMET T520T476M004ATE070	47 µF	Surface Mount	General Purpose	70 mOhm	4 V	0.11 in	2.8 mm	0.138 "	3.5 mm	2000 Hrs	1.2 mm	0.047 in	T	1411	3528 Metric	20 %	105 ░C	-55 °C	Molded
KEMET T520T476M006ATE070	47 µF	Surface Mount	General Purpose	70 mOhm	6.3 V	0.11 in	2.8 mm	0.138 "	3.5 mm	2000 Hrs	1.2 mm	0.047 in	T	1411	3528 Metric	20 %	105 ░C	-55 °C	Molded
KEMET T520T107M2R5ATE040	100 µF	Surface Mount	General Purpose	40 mOhm	2.5 V	0.11 in	2.8 mm	0.138 "	3.5 mm	2000 Hrs	1.2 mm	0.047 in	T	1411	3528 Metric	20 %	105 ░C	-55 °C	Molded
KEMET T520T336M010ATE040	33 ÁF	Surface Mount	General Purpose	40 mOhm	10 V	0.11 in	2.8 mm	0.138 "	3.5 mm	2000 Hrs	1.2 mm	0.047 in	T	1411	3528 Metric	20 %	105 ░C	-55 °C	Molded
KEMET T520T156M006ATE100	15 µF	Surface Mount	General Purpose	100 mOhm	6.3 V	0.11 in	2.8 mm	0.138 "	3.5 mm	2000 Hrs	1.2 mm	0.047 in	T	1411	3528 Metric	20 %	105 ░C	-55 °C	Molded
KEMET T520T336M008ATE070	33 ÁF	Surface Mount	General Purpose	70 mOhm		0.11 in	2.8 mm	0.138 "	3.5 mm	2000 Hrs	1.2 mm	0.047 in	T	1411	3528 Metric	20 %	105 ░C	-55 °C	Molded	8 V
KEMET T520T476M006AHE070	47 µF	Surface Mount	General Purpose	70 mOhm	6.3 V	0.11 in	2.8 mm	0.138 "	3.5 mm	2000 Hrs	1.2 mm	0.047 in	T	1411	3528 Metric	20 %	105 ░C	-55 °C	Molded
KEMET T520T107M004ATE150	100 µF	Surface Mount	General Purpose	150 mOhm	4 V	0.11 in	2.8 mm	0.138 "	3.5 mm	2000 Hrs	1.2 mm	0.047 in	T	1411	3528 Metric	20 %	105 ░C	-55 °C	Molded
KEMET T520T106M12RATE150	10 µF	Surface Mount	General Purpose	150 mOhm	12.5 V	0.11 in	2.8 mm	0.138 "	3.5 mm	2000 Hrs	1.2 mm	0.047 in	T	1411	3528 Metric	20 %	105 ░C	-55 °C	Molded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.46
Newark	Each (Supplied on Full Reel)	1	$ 0.37
		6000	$ 0.37
		12000	$ 0.36
		18000	$ 0.36
		24000	$ 0.35

Description

General part information

T520T Series

100 µF Molded Tantalum Polymer Capacitor 2.5 V 1411 (3528 Metric) 70mOhm @ 100kHz

Documents

Technical documentation and resources

Manufacturer Catalogue EN

Datasheet

T52x,T530 Series, KO-CAP®

Datasheet
