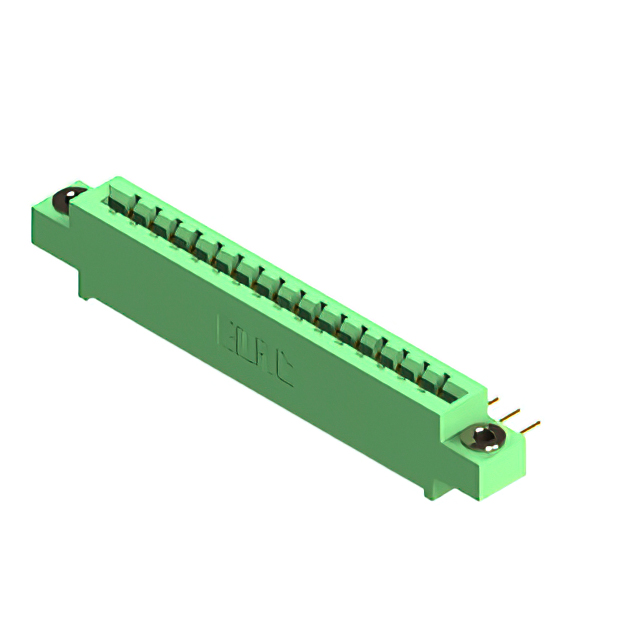

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 16 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

337-016-559-603

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 16 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-016-559-603

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions/Bay/Row [custom]	16
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

337-016 Series

...

Part	Read Out	Contact Finish	Termination Rows	Number of Positions/Bay/Row [custom]	Mounting Type	Flange Feature	Flange Feature	Flange Feature	Card Type	Color	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Contact Type	Contact Material	Material - Insulation	Pitch [x]	Pitch [x]	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 337-016-542-612	Single	Gold	1	16	Through Hole	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Non Specified - Single Edge	Green	1	16	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Wire Wrap	10 Áin	0.25 Ám
EDAC Inc. 337-016-558-207	Dual	Gold	2		Through Hole Right Angle	Flush Mount M3 Threaded Insert Top Opening			Non Specified - Dual Edge	Green	2	16	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Wire Wrap	10 Áin	0.25 Ám	8	8	8
EDAC Inc. 337-016-520-802	Dual	Gold	2		Through Hole		3.25 mm	0.128 in	Non Specified - Dual Edge	Green	2	16	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Solder	10 Áin	0.25 Ám	8	8	8
EDAC Inc. 337-016-558-212	Dual	Gold	2		Through Hole Right Angle	Flush Mount Side Opening Unthreaded			Non Specified - Dual Edge	Green	2	16	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Wire Wrap	10 Áin	0.25 Ám	8	8	8	3.25 mm	0.128 "
EDAC Inc. 337-016-559-603	Single	Gold	1	16	Through Hole Right Angle	Floating Bobbin Top Mount Opening			Non Specified - Single Edge	Green	1	16	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Wire Wrap	10 Áin	0.25 Ám				2.95 mm	0.116 in
EDAC Inc. 337-016-541-858	Dual	Gold	2		Through Hole	4-40 Threaded Insert Top Mount Opening			Non Specified - Dual Edge	Green	2	16	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Wire Wrap	10 Áin	0.25 Ám	8	8	8
EDAC Inc. 337-016-540-808	Dual	Gold	2		Through Hole	4-40 Threaded Insert Top Mount Opening			Non Specified - Dual Edge	Green	2	16	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Wire Wrap	10 Áin	0.25 Ám	8	8	8
EDAC Inc. 337-016-556-858	Dual	Gold	2		Board Edge Straddle Mount	4-40 Threaded Insert Top Mount Opening			Non Specified - Dual Edge	Green	2	16	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Solder	10 Áin	0.25 Ám	8	8	8
EDAC Inc. 337-016-500-603	Single	Gold	1	16	Through Hole	Floating Bobbin Top Mount Opening			Non Specified - Single Edge	Green	1	16	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Solder Eyelet(s)	10 Áin	0.25 Ám				2.95 mm	0.116 in
EDAC Inc. 337-016-544-103	Single	Gold	1	16	Through Hole	Floating Bobbin Flush Mount			Non Specified - Single Edge	Green	1	16	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Cantilever	Copper Alloy	Polyester Thermoplastic	0.156 in	3.96 mm	Wire Wrap	10 Áin	0.25 Ám				2.95 mm	0.116 in
