MCR-B-S-RA-TSMT-NP-CS4-T/R

Active

MICRO USB, TYPE B, RIGHT ANGLE,

Active

MICRO USB, TYPE B, RIGHT ANGLE,

Description

General part information

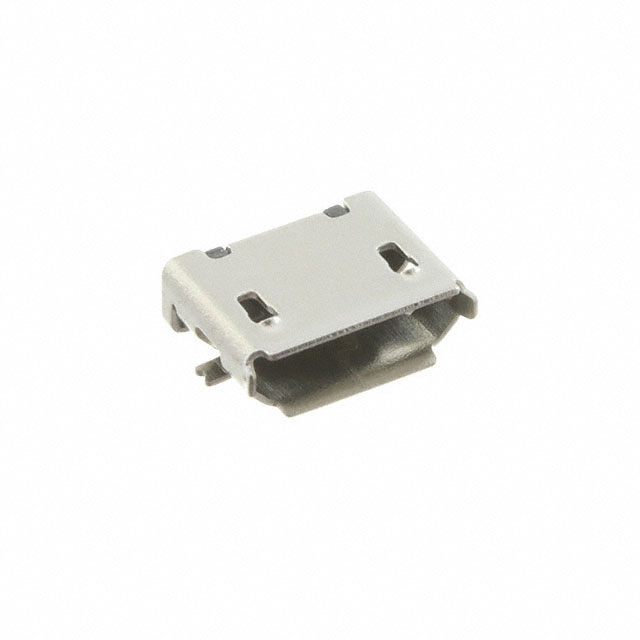

USB - micro B Receptacle Connector 5 Position Surface Mount, Right Angle

Parameters and characteristics for this part

Specification	MCR-B-S-RA-TSMT-NP-CS4-T/R

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating	1 A
Features	Solder Retention
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal
Mounting Type	Right Angle, Surface Mount
Number of Contacts	5
Number of Ports	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-30 °C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Termination	Solder

Part	Operating Temperature (Min)	Operating Temperature (Max)	Number of Ports	Current Rating	Number of Contacts	Shielding	Termination	Features	Mounting Feature	Mounting Type	Gender	Connector Type	Shell/Shielding Material	Insulation Color	Contact Finish	Material Flammability Rating
Adam Tech MCR-B-S-RA-TSMT-NP-CS4-T/R	-30 °C	80 °C	1	1 A	5	Shielded	Solder	Solder Retention	Horizontal	Right Angle Surface Mount	Receptacle	USB - micro B	Copper Alloy	Black	Gold	UL94 V-0
Adam Tech MCR-B-S-RA-SMT-EH4B-T/R	-30 °C	80 °C	1	1 A	5	Shielded	Solder		Horizontal Mid Mount	Board Cutout Right Angle Surface Mount Through Hole	Receptacle	USB - micro B	Copper Alloy	Black	Gold	UL94 V-0
Adam Tech MCR-B-S-RA-SMT-NP-CS6B-T/R	-30 °C	80 °C	1	1 A	5	Shielded	Solder	Solder Retention	Horizontal	Right Angle Surface Mount	Receptacle	USB - micro B	Copper Alloy	Black	Gold	UL94 V-0
