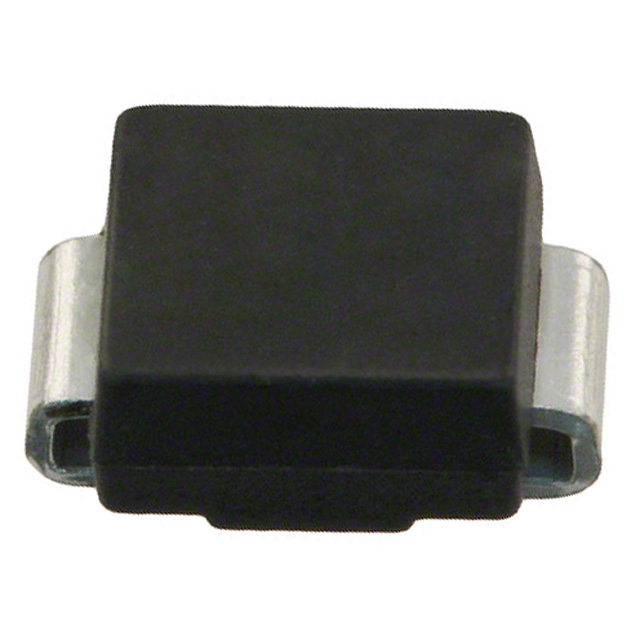

STTH2R02UY

Active

STMicroelectronics

DIODE SWITCHING 200V 2A 2-PIN SMB T/R AUTOMOTIVE AEC-Q101

Deep-Dive with AI

Search across all available documentation for this part.

Documents AN5046 +5

STTH2R02UY

Active

STMicroelectronics

DIODE SWITCHING 200V 2A 2-PIN SMB T/R AUTOMOTIVE AEC-Q101

Deep-Dive with AI

Documents AN5046 +5

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	5000	$ 0.08
Digikey	Cut Tape (CT)	1	$ 0.44
	Digi-Reel®	1	$ 0.44
	Tape & Reel (TR)	2500	$ 0.12
		5000	$ 0.11
		12500	$ 0.10
		25000	$ 0.10
		62500	$ 0.09
Newark	Each (Supplied on Cut Tape)	1	$ 0.58
		10	$ 0.36
		25	$ 0.31
		50	$ 0.27
		100	$ 0.23
		250	$ 0.20
		500	$ 0.17
		1000	$ 0.15

Description

General part information

STTH2 Series

The STTH2R06 uses ST Turbo 2 600 V planar Pt doping technology. It is specially suited for switching mode base drive and transistor circuits.

Packaged in axial, SMA, SMB and SMC, this device is intended for use in high frequency inverters, free wheeling and polarity protection.

Documents

Technical documentation and resources

Selection Guides

Datasheet

Product Change Notice EN

Datasheet

Specification	STTH2R02UY	STTH2 Series

Current - Average Rectified (Io)	2 A	2 A
Current - Average Rectified (Io) (per Diode)	-	10 - 100 A
Current - Reverse Leakage @ Vr	3 µA	1 - 30 µA
Diode Configuration	-	1 Pair Common Cathode, 2 Independent
Grade	Automotive	Automotive
Mounting Type	Surface Mount	Through Hole, Surface Mount, Chassis Mount
Operating Temperature - Junction	-	-40 °C
Operating Temperature - Junction	-	150 °C
Operating Temperature - Junction [Max]	175 °C	175 °C
Package / Case	SMB, DO-214AA	TO-220-3, SMB, DO-214AA, D2PAK (2 Leads + Tab), TO-263AB, TO-263-3, DO-204AL, DO-41, Axial, SOT-227-4, miniBLOC, SMC, DO-214AB, DO-214AC, SMA
Reverse Recovery Time (trr)	30 ns	30 - 85 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	SMB	TO-220, SMB, D2PAK, DO-41, ISOTOP, SMC, SMA
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V	200 - 600 V
Voltage - Forward (Vf) (Max) @ If	1 V	1 - 1.7 V
Voltage - Forward (Vf) (Max) @ If	-	1.7 - 2 V

Part	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Reverse Leakage @ Vr	Supplier Device Package	Speed	Mounting Type	Package / Case	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Operating Temperature - Junction [Min]	Operating Temperature - Junction	Grade
STMicroelectronics STTH20LCD06CT	1 Pair Common Cathode	10 A	2 V	1 µA	TO-220	200 mA, 500 ns	Through Hole	TO-220-3	175 °C	50 ns	Standard	600 V
STMicroelectronics STTH2R02U				3 µA	SMB	200 mA, 500 ns	Surface Mount	DO-214AA, SMB	175 °C	30 ns	Standard	200 V	1 V	2 A
STMicroelectronics STTH2003CG	1 Pair Common Cathode	10 A		20 µA	D2PAK	200 mA, 500 ns	Surface Mount	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	175 °C	35 ns	Standard	300 V	1.25 V
STMicroelectronics STTH2L06U				2 µA	SMB	200 mA, 500 ns	Surface Mount	DO-214AA, SMB	175 °C	85 ns	Standard	600 V	1.3 V	2 A
STMicroelectronics STTH2R06RL			1.7 V	2 µA	DO-41	200 mA, 500 ns	Through Hole	Axial, DO-204AL, DO-41	175 ░C	50 ns	Standard	600 V		2 A	-40 °C
STMicroelectronics STTH200W06TV1	2 Independent	100 A		30 µA	ISOTOP	200 mA, 500 ns	Chassis Mount	SOT-227-4, miniBLOC		75 ns	Standard	600 V	1.5 V			150 °C
STMicroelectronics STTH20R04G				20 µA	D2PAK	200 mA, 500 ns	Surface Mount	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	175 °C	45 ns	Standard	400 V	1.7 V
STMicroelectronics STTH2R06S			1.7 V	2 µA	SMC	200 mA, 500 ns	Surface Mount	DO-214AB, SMC	175 ░C	50 ns	Standard	600 V		2 A	-40 °C
STMicroelectronics STTH2L06A				2 µA	SMA	200 mA, 500 ns	Surface Mount	DO-214AC, SMA	175 °C	85 ns	Standard	600 V	1.3 V	2 A
STMicroelectronics STTH2R02UY				3 µA	SMB	200 mA, 500 ns	Surface Mount	DO-214AA, SMB	175 °C	30 ns	Standard	200 V	1 V	2 A			Automotive
