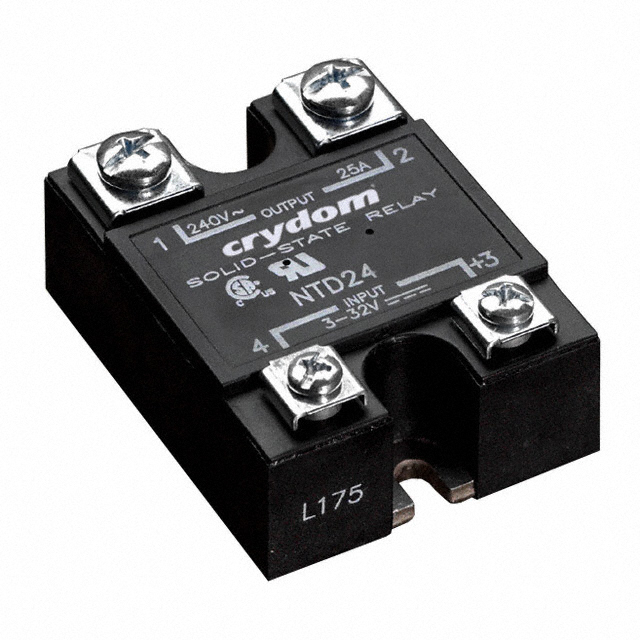

NTD2425-10

Obsolete

Sensata-Crydom

SSR RELAY SPST-NO 25A 24-280V

Search across all available documentation for this part.

Obsolete

Sensata-Crydom

SSR RELAY SPST-NO 25A 24-280V

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Load Current	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Termination Style	Voltage - Input [Max]	Voltage - Input [Min]	Output Type
Sensata-Crydom NTD2425-10	CE CSA UL	25 A	24 V	280 V	Chassis Mount	-40 °C	80 C	Hockey Puck	Screw Terminal	32 V	3 V	AC
Sensata-Crydom NTD2410	CE CSA UL	10 A	24 V	280 V	Chassis Mount	-40 °C	80 C	Hockey Puck	Screw Terminal	32 V	3 V	AC Zero Cross

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State SPST-NO (1 Form A) Hockey Puck

Technical documentation and resources
