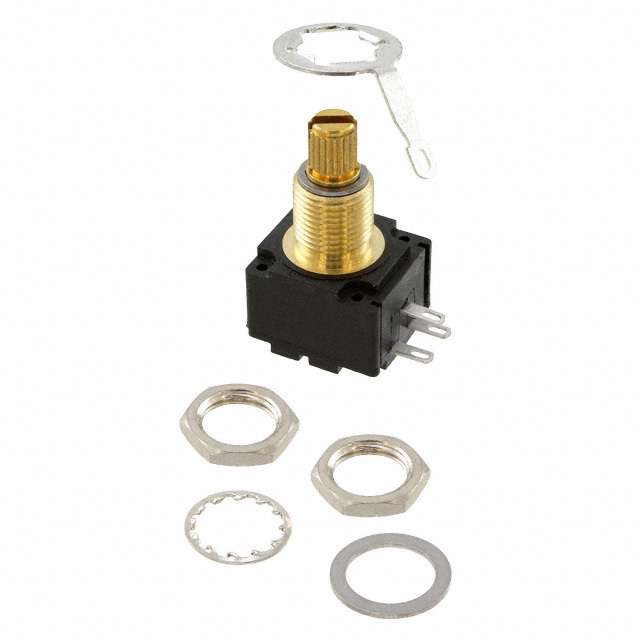

95Z1D-Z33-EA0/320L

Active

Bourns Inc.

GUITAR POT - 5/8" (16MM) ST-CP /TRAY PACKAGING ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

GUITAR POT - 5/8" (16MM) ST-CP /TRAY PACKAGING ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Resistance (Ohms)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Bushing Thread	Number of Gangs	Termination Style	Adjustment Type	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Taper	Actuator Type	Rotation	Tolerance	Resistive Material	Actuator Length [x]	Actuator Length [x]	Number of Turns	Temperature Coefficient	Power (Watts)	Power (Watts)	Resistance (Ohms)
Bourns Inc. 95Z1D-Z33-EA0/324L	500 kOhms	5.97 mm	0.235 in	3/8-32	1	Solder Lug	User Defined	0.687 in	0.625 in	17.45 mm	15.88 mm	Linear	Knurled and Slotted	300 ░	20 %	Conductive Plastic	26.82 mm	1.056 in	1	1000 ppm/°C	0.25 W	250 mW
Bourns Inc. 95Z1D-Z33-EA0/320L	50 kOhms	5.97 mm	0.235 in	3/8-32	1	Solder Lug	User Defined	0.687 in	0.625 in	17.45 mm	15.88 mm	Logarithmic	Knurled and Slotted	300 ░	20 %	Conductive Plastic	26.82 mm	1.056 in	1	1000 ppm/°C	0.25 W	250 mW
Bourns Inc. 95Z1D-Z33-EA0/304L		5.97 mm	0.235 in	3/8-32	1	Solder Lug	User Defined	0.687 in	0.625 in	17.45 mm	15.88 mm	Logarithmic	Knurled and Slotted	300 ░	20 %	Conductive Plastic	26.82 mm	1.056 in	1	1000 ppm/°C	0.25 W	250 mW	250k

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	135	$ 23.40
Newark	Each	100	$ 20.19
		250	$ 19.59

General part information

50k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W Solder Lug
