2332-40FG00DPT1-S

Active

Oupiin

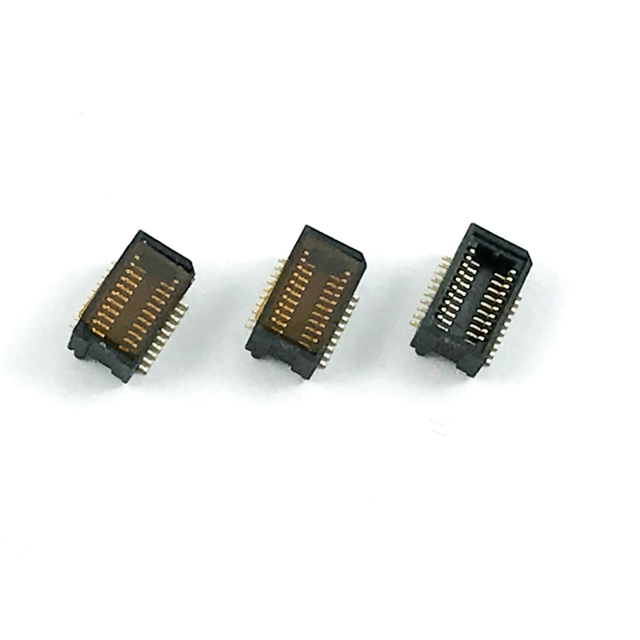

BOARD TO BOARD, 40 PIN, FEMALE C

Search across all available documentation for this part.

Active

Oupiin

BOARD TO BOARD, 40 PIN, FEMALE C

Technical Specifications

Parameters and characteristics for this part

Specification	2332-40FG00DPT1-S

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Board Guide
Height Above Board	0.108 in
Height Above Board	2.75 mm
Mated Stacking Heights	3.5 mm, 4.5 mm, 4 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Features	Contact Finish Thickness	Number of Positions	Mounting Type	Number of Rows	Contact Finish	Mated Stacking Heights	Connector Type
Oupiin 2332-40FG00DPT1-S	0.108 in	2.75 mm	0.5 mm	0.02 in	Board Guide	Flash	40	Surface Mount	2	Gold	3.5 mm 4 mm 4.5 mm 5 mm	Receptacle Outer Shroud Contacts
Oupiin 2332-40MG00DPT2-S	0.108 in	2.75 mm	0.5 mm	0.02 in	Board Guide	Flash	40	Surface Mount	2	Gold	3.5 mm 4 mm 4.5 mm 5 mm
Oupiin 2332-40MG00DPT1-S	0.094 "	2.4 mm	0.5 mm	0.02 in	Board Guide	Flash	40	Surface Mount	2	Gold	3.5 mm 4 mm 4.5 mm 5 mm
