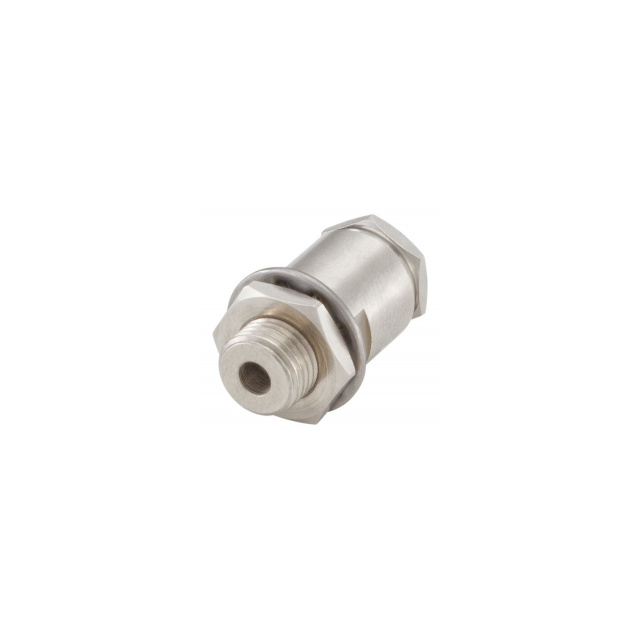

51Z101-006A
ActiveRosenberger
BNC CABLE FEED THROUGH
Deep-Dive with AI
Search across all available documentation for this part.
51Z101-006A
ActiveRosenberger
BNC CABLE FEED THROUGH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 51Z101-006A |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 141 |
| Cable Group | RG-58C |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 10 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 480 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.42 | |
| 10 | $ 23.14 | |||
| 25 | $ 22.14 | |||
| 50 | $ 21.42 | |||
| 100 | $ 20.71 | |||
| 250 | $ 19.57 | |||
| 500 | $ 18.99 | |||
Description
General part information
51Z101 Series
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
