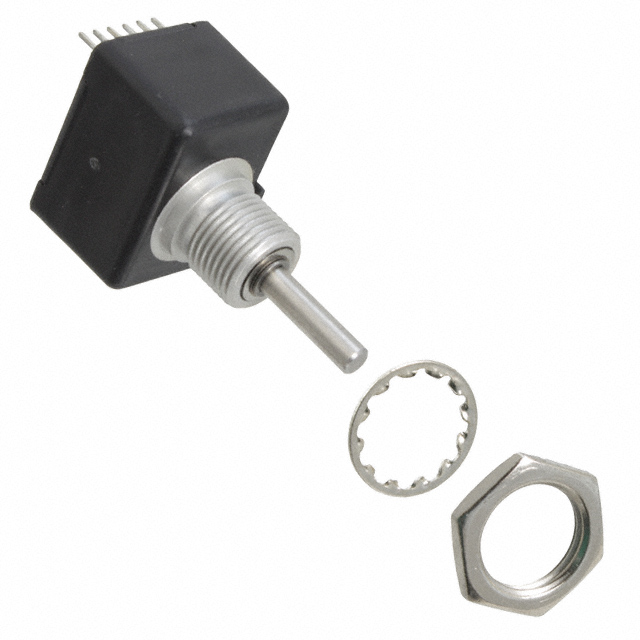

EMS22A50-D16-LT6

Active

Bourns Inc.

ROTARY ENCODER MAGNETIC 1024PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER MAGNETIC 1024PPR

Technical Specifications

Parameters and characteristics for this part

Specification	EMS22A50-D16-LT6

Actuator Type	1/8" Dia Round End
Detent	False
Encoder Type	Magnetic
Orientation	Vertical
Output Type	True
Pulses per Revolution	1024
Rotational Life (Cycles Min) [Min]	50M
Termination Style	PC Pin

Part	Encoder Type	Termination Style	Orientation	Actuator Type	Rotational Life (Cycles Min) [Min]	Pulses per Revolution
Bourns Inc. EMS22A50-D28-MT6
Bourns Inc. EMS22A50-D16-LT6	Magnetic	PC Pin	Vertical	1/8" Dia Round End	50M	1024
Bourns Inc. EMS22A50-D28-LT6	Magnetic	PC Pin	Vertical	1/8" Dia Round End	50M	1024

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	42	$ 46.79

General part information

Rotary Encoder Magnetic 1024 Binary (Absolute) Vertical
