Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANT7-T-M24SR64 | ANT7 Series |
|---|---|---|
| - | - | |
| For Use With/Related Products | M24SR64-Y | M24SR64-Y |
| Frequency | 13.56 MHz | 13.56 MHz |
| Supplied Contents | Board(s) | Board(s) |
| Type | Antenna | Antenna |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.92 | |
ANT7 Series
14 mm x 14 mm double layer antenna reference board for the M24SR64 Dual Interface EEPROM
| Part | Supplied Contents | Frequency | Type | For Use With/Related Products |
|---|---|---|---|---|
STMicroelectronics ANT7-T-M24SR64 | ||||
STMicroelectronics ANT7-T-M24SR64 | Board(s) | 13.56 MHz | Antenna | M24SR64-Y |
Description
General part information
ANT7 Series

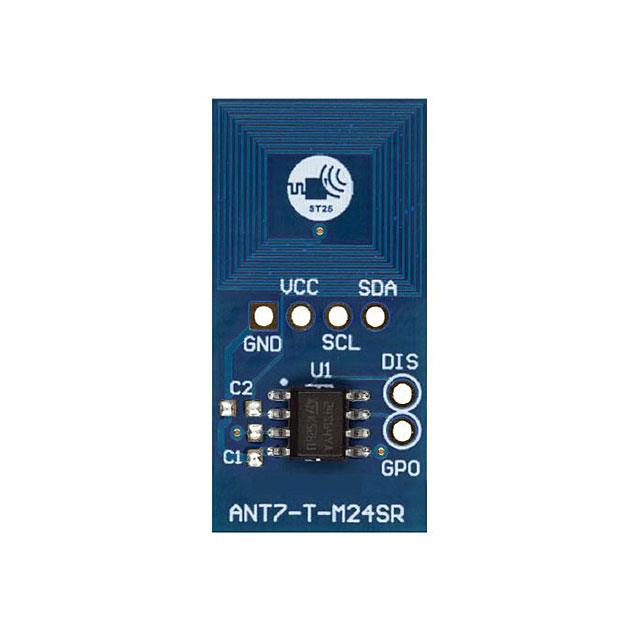

The ANT7-T-M24SR64 antenna reference board is a ready-to-use PCB featuring an M24SR64-Y dual interface EEPROM connected to a 14 mm x 14 mm, 13.56 MHz etched RF double layer antenna on one side, and to an I2C bus on the other side.
The ANT7-T-M24SR64 demonstration board allows system designers to evaluate the M24SR64-Y performance and capabilities, and to get started with their design.
The ANT7-T-M24SR64 design and the Gerber files can be downloaded from www.st.com.
