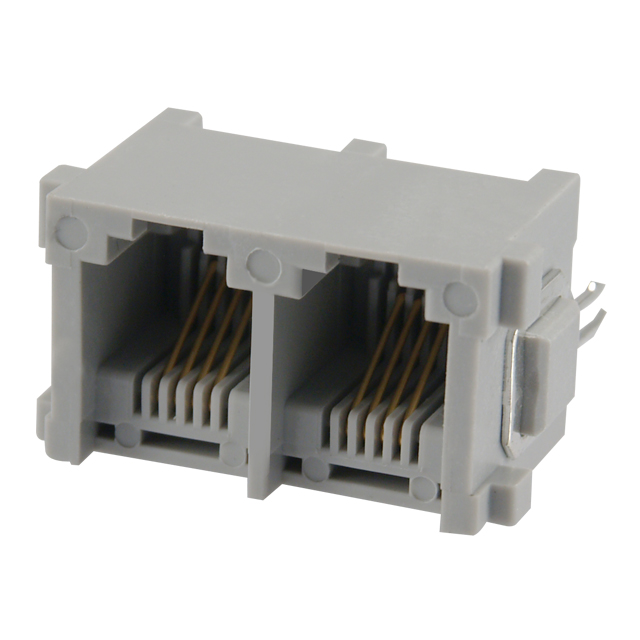

GPX-2-64-50

Active

Kycon, Inc.

GANGJACK-2PORT-PERPEND-6P4C GREY

Search across all available documentation for this part.

Active

Kycon, Inc.

GANGJACK-2PORT-PERPEND-6P4C GREY

Technical Specifications

Parameters and characteristics for this part

Specification	GPX-2-64-50

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	2
Number of Positions/Contacts	6p4c
Number of Rows	1
Orientation	Vertical
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

Part	Termination	Shielding	Tab Direction	LED Color	Housing Material	Number of Ports	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Contacts	Contact Finish	Contact Material	Connector Type	Mounting Type	Orientation	Number of Rows	Contact Finish Thickness
Kycon, Inc. GPX-2-64-50	Solder	Unshielded	User Selectable	Does Not Contain LED	Polybutylene Terephthalate (PBT)	2	50 µin	1.27 µm	6p4c	Gold	Phosphor Bronze	Jack	Through Hole	Vertical	1
Kycon, Inc. GPX-2-66	Solder	Unshielded	User Selectable	Does Not Contain LED	Polybutylene Terephthalate (PBT)	2			6p6c (RJ11 RJ12 RJ14 RJ25)	Gold	Phosphor Bronze	Jack	Through Hole	Vertical	1	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 5.07
