R180060017

Active

Radiall USA, Inc.

NEX10 M STR THD SD1/4 C50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

NEX10 M STR THD SD1/4 C50

Technical Specifications

Parameters and characteristics for this part

Specification	R180060017

Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	NEX10
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	20 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Fastening Type	Connector Type	Frequency - Max [Max]	Impedance	Voltage Rating	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Center Contact Plating	Shield Termination	Mounting Type	Body Material	Center Contact Material	Dielectric Material	Number of Ports
Radiall USA, Inc. R180060017	Snap-On	Male Pin Plug	20 GHz	50 Ohms	500 V	NEX10	-55 °C	125 °C	Solder	Silver	Solder	Free Hanging (In-Line)	Brass	Brass	Polytetrafluoroethylene (PTFE)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

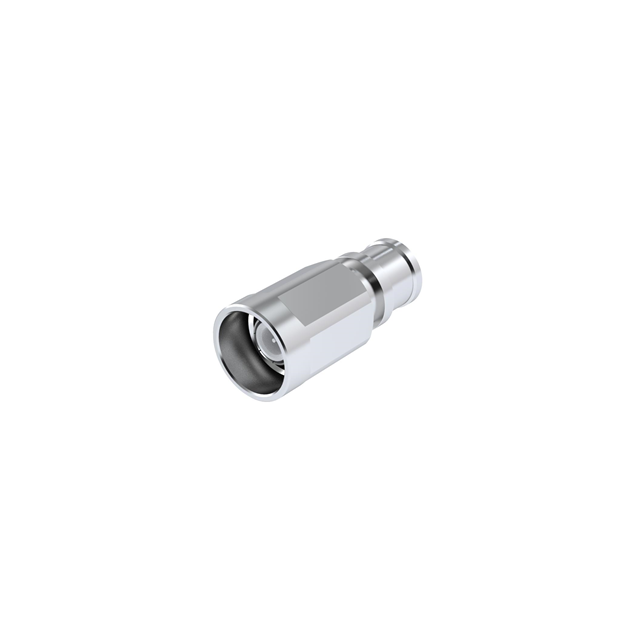

NEX10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
