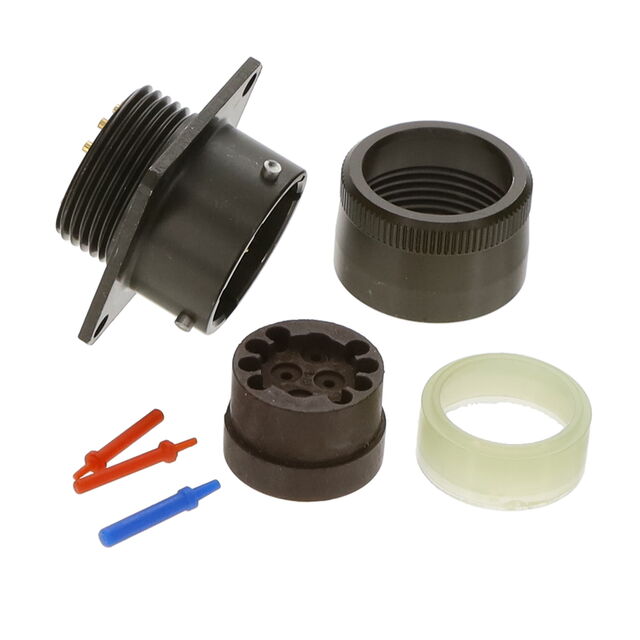

MS3110E14-12P

Active

Amphenol Aerospace Operations

MIL-26482 MS/PT/CMB RECEPT

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

MIL-26482 MS/PT/CMB RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3110E14-12P

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	13 A, 7.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	14-12
Shielding	Unshielded
Voltage Rating	600 VAC

Part	Insert Material	Primary Material	Fastening Type	Orientation	Qualification	Connector Type	Applications	Shell Material	Ingress Protection	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions	Shell Finish	Current Rating (Amps)	Grade	Contact Material	Features	Voltage Rating	Mounting Feature	Shell Size - Insert	Contact Finish - Mating
Amphenol Aerospace Operations MS3110E14-12P	Neoprene	Metal	Bayonet Lock	N	MIL-DTL-26482 Series I	Male Pins Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Environment Resistant	Unshielded	-55 °C	125 °C	Olive Drab	12	Olive Drab Chromate over Cadmium	7.5 A 13 A	Military	Copper Alloy	Backshell	600 VAC	Flange	14-12	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Male Pins Solder Cup
