628W17W2222-1N2

Active

EDAC Inc.

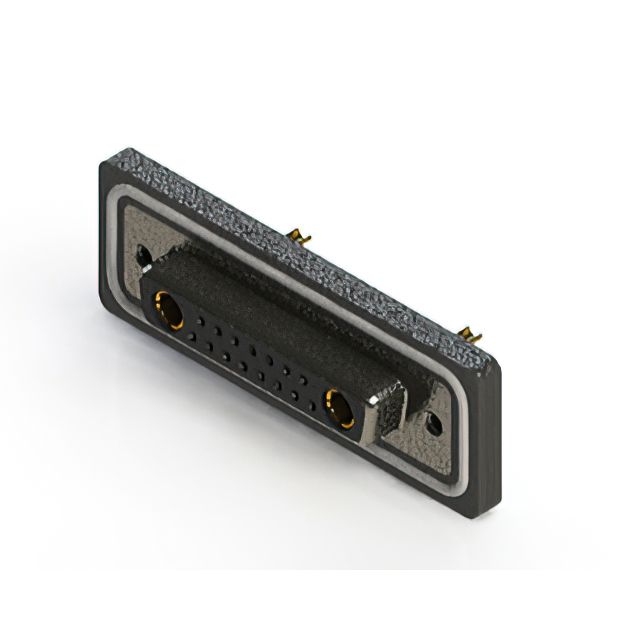

CONN D-SUB RCPT 17P PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628W17W2222-1N2

Active

EDAC Inc.

CONN D-SUB RCPT 17P PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628W17W2222-1N2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	17W2, 3 (DB, B)
Voltage Rating	125 VDC

628W17W Series

Part	Contact Finish	Features	Connector Style	Flange Feature	Shell Material, Finish	Ingress Protection	Number of Rows	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Contact Type	Dielectric Material	Color	Mounting Type	Connector Type	Voltage Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Current Rating (Amps)	Contact Finish Thickness	Termination
EDAC Inc. 628W17W2122-2NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 20 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)
EDAC Inc. 628W17W2122-1N2	Gold	Shielded	Combo D-Sub	Housing/Shell (4-40)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2		Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)	10A 5A
EDAC Inc. 628W17W2222-2NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 20 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C			17W2 3 (DB B)		Flash
EDAC Inc. 628W17W2124-4NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 40 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)			Solder
EDAC Inc. 628W17W2124-4N5	Gold	Board Lock Shielded	Combo D-Sub	4-40 Board Side	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 40 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)			Solder
EDAC Inc. 628W17W2222-3NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 30 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C			17W2 3 (DB B)		Flash
EDAC Inc. 628W17W2122-3N2	Gold	Shielded	Combo D-Sub	Housing/Shell (4-40)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 30 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)
EDAC Inc. 628W17W2222-1N2	Gold	Shielded	Combo D-Sub	Housing/Shell (4-40)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2		Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C			17W2 3 (DB B)	10A 5A	Flash
EDAC Inc. 628W17W2122-4NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 40 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)
EDAC Inc. 628W17W2122-1NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2		Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)	10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 14.91

Description

General part information

628W17W Series

17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
