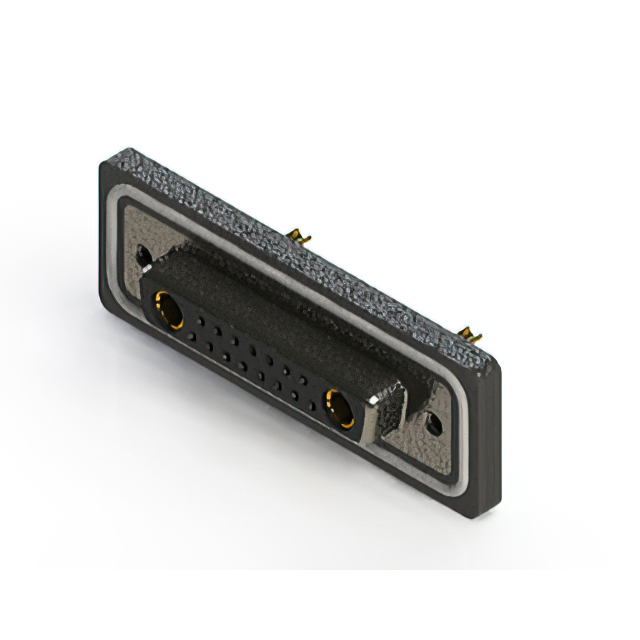

628W17W2122-1N2
ActiveEDAC Inc.
CONN D-SUB RCPT 17P PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
628W17W2122-1N2
ActiveEDAC Inc.
CONN D-SUB RCPT 17P PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 628W17W2122-1N2 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.127 µm |
| Contact Finish Thickness | 5 µin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5A, 10A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 15 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 17W2, 3 (DB, B) |
| Voltage Rating | 125 VDC |
628W17W Series
| Part | Contact Finish | Features | Connector Style | Flange Feature | Shell Material, Finish | Ingress Protection | Number of Rows | Material Flammability Rating | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Contact Type | Dielectric Material | Color | Mounting Type | Connector Type | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Current Rating (Amps) | Contact Finish Thickness | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Shielded | Combo D-Sub | Housing/Shell (M3) | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | 15 | 2 | 5 A 20 A | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Black | Panel Mount Through Hole | Receptacle Female Sockets | 125 VDC | Copper Alloy | -25 °C | 85 °C | 0.127 µm | 5 µin | 17W2 3 (DB B) | |||
EDAC Inc. | Gold | Shielded | Combo D-Sub | Housing/Shell (4-40) | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | 15 | 2 | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Black | Panel Mount Through Hole | Receptacle Female Sockets | 125 VDC | Copper Alloy | -25 °C | 85 °C | 0.127 µm | 5 µin | 17W2 3 (DB B) | 10A 5A | |||
EDAC Inc. | Gold | Shielded | Combo D-Sub | Housing/Shell (M3) | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | 15 | 2 | 5 A 20 A | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Black | Panel Mount Through Hole | Receptacle Female Sockets | 125 VDC | Copper Alloy | -25 °C | 85 °C | 17W2 3 (DB B) | Flash | ||||
EDAC Inc. | Gold | Shielded | Combo D-Sub | Housing/Shell (M3) | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | 15 | 2 | 5 A 40 A | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Black | Panel Mount Through Hole | Receptacle Female Sockets | 125 VDC | Copper Alloy | -25 °C | 85 °C | 0.127 µm | 5 µin | 17W2 3 (DB B) | Solder | ||
EDAC Inc. | Gold | Board Lock Shielded | Combo D-Sub | 4-40 Board Side | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | 15 | 2 | 5 A 40 A | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Black | Panel Mount Through Hole | Receptacle Female Sockets | 125 VDC | Copper Alloy | -25 °C | 85 °C | 0.127 µm | 5 µin | 17W2 3 (DB B) | Solder | ||
EDAC Inc. | Gold | Shielded | Combo D-Sub | Housing/Shell (M3) | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | 15 | 2 | 5 A 30 A | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Black | Panel Mount Through Hole | Receptacle Female Sockets | 125 VDC | Copper Alloy | -25 °C | 85 °C | 17W2 3 (DB B) | Flash | ||||
EDAC Inc. | Gold | Shielded | Combo D-Sub | Housing/Shell (4-40) | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | 15 | 2 | 5 A 30 A | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Black | Panel Mount Through Hole | Receptacle Female Sockets | 125 VDC | Copper Alloy | -25 °C | 85 °C | 0.127 µm | 5 µin | 17W2 3 (DB B) | |||
EDAC Inc. | Gold | Shielded | Combo D-Sub | Housing/Shell (4-40) | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | 15 | 2 | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Black | Panel Mount Through Hole | Receptacle Female Sockets | 125 VDC | Copper Alloy | -25 °C | 85 °C | 17W2 3 (DB B) | 10A 5A | Flash | ||||
EDAC Inc. | Gold | Shielded | Combo D-Sub | Housing/Shell (M3) | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | 15 | 2 | 5 A 40 A | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Black | Panel Mount Through Hole | Receptacle Female Sockets | 125 VDC | Copper Alloy | -25 °C | 85 °C | 0.127 µm | 5 µin | 17W2 3 (DB B) | |||
EDAC Inc. | Gold | Shielded | Combo D-Sub | Housing/Shell (M3) | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 2 | UL94 V-0 | 15 | 2 | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Black | Panel Mount Through Hole | Receptacle Female Sockets | 125 VDC | Copper Alloy | -25 °C | 85 °C | 0.127 µm | 5 µin | 17W2 3 (DB B) | 10A 5A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 14.89 | |
Description
General part information
628W17W Series
17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
