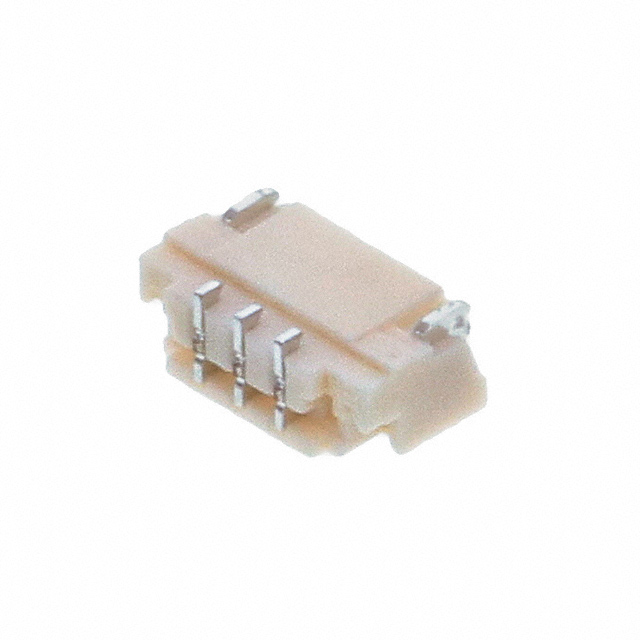

Specification	SM03B-SURS-TF

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating Options	0.2A, 0.5A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.069 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.031 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	30 V

SM03B-SU Series

Part	Insulation Height	Contact Shape	Shrouding	Insulation Color	Number of Rows	Fastening Type	Mounting Type	Features	Contact Finish - Post	Voltage Rating	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Contact Type	Current Rating Options	Pitch - Mating	Insulation Material	Style	Connector Type
JST Sales America Inc. SM03B-SURS-TF	0.069 in	Rectangular	Shrouded - 4 Wall	Natural	1	Push-Pull	Right Angle Surface Mount	Solder Retention	Tin	30 V	Tin	3	UL94 V-0	All	Solder	85 °C	-25 °C	Copper Alloy	Outer Shroud Contact	0.2A 0.5A	0.031 in	Nylon Polyamide (PA)	Board Cable/Wire	Header
