Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NCS3S4803SC | NCS3S Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 700 mA | 200 - 700 mA |
| Efficiency | 74 % | 74 - 83 % |
| Features | SCP | SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-DIP Module, 6 Leads | 8-DIP Module, 6 Leads |
| Power (Watts) | 3 W | 3 W |
| Size / Dimension [x] | 22 mm | 22 mm |
| Size / Dimension [x] | 0.86 in | 0.86 in |
| Size / Dimension [y] | 9.5 mm | 9.5 mm |
| Size / Dimension [y] | 0.37 " | 0.37 " |
| Size / Dimension [z] | 11.3 mm | 11.3 mm |
| Size / Dimension [z] | 0.44 " | 0.44 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 18 V | 9 - 18 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 3.3 V | 3.3 - 15 V |
NCS3S Series

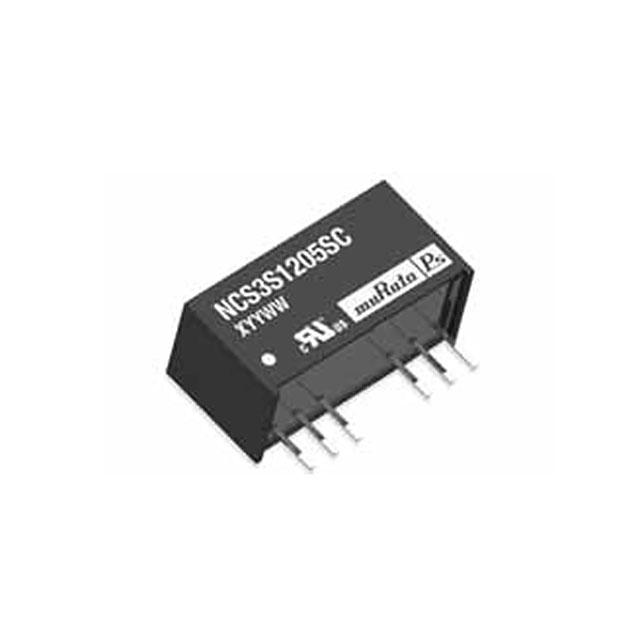

Isolated DC/DC Converters - Through Hole DC/DC TH 3W 48V-3.3V
| Part | Voltage - Input (Max) [Max] | Voltage - Output 1 | Features | Current - Output (Max) [Max] | Number of Outputs | Efficiency | Package / Case | Type | Applications | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NCS3S4803SC | 75 V | 3.3 V | SCP | 700 mA | 1 | 74 % | 8-DIP Module, 6 Leads | Isolated Module | ITE (Commercial) | 18 V | 85 °C | -40 °C | Through Hole | 11.3 mm | 22 mm | 0.44 " | 9.5 mm | 0.37 " | 0.86 in | 1.5 kV | 3 W |
Murata Power Solutions Inc. NCS3S1205SC | 36 V | 5 V | SCP | 600 mA | 1 | 8-DIP Module, 6 Leads | Isolated Module | ITE (Commercial) | 9 V | 85 °C | -40 °C | Through Hole | 11.3 mm | 22 mm | 0.44 " | 9.5 mm | 0.37 " | 0.86 in | 1.5 kV | 3 W | |
Murata Power Solutions Inc. NCS3S4805SC | 75 V | 5 V | SCP | 600 mA | 1 | 80 % | 8-DIP Module, 6 Leads | Isolated Module | ITE (Commercial) | 18 V | 85 °C | -40 °C | Through Hole | 11.3 mm | 22 mm | 0.44 " | 9.5 mm | 0.37 " | 0.86 in | 1.5 kV | 3 W |
Murata Power Solutions Inc. NCS3S4812SC | 75 V | 12 V | SCP | 250 mA | 1 | 81 % | 8-DIP Module, 6 Leads | Isolated Module | ITE (Commercial) | 18 V | 85 °C | -40 °C | Through Hole | 11.3 mm | 22 mm | 0.44 " | 9.5 mm | 0.37 " | 0.86 in | 1.5 kV | 3 W |
Murata Power Solutions Inc. NCS3S4815SC | 75 V | 15 V | SCP | 200 mA | 1 | 83 % | 8-DIP Module, 6 Leads | Isolated Module | ITE (Commercial) | 18 V | 85 °C | -40 °C | Through Hole | 11.3 mm | 22 mm | 0.44 " | 9.5 mm | 0.37 " | 0.86 in | 1.5 kV | 3 W |
