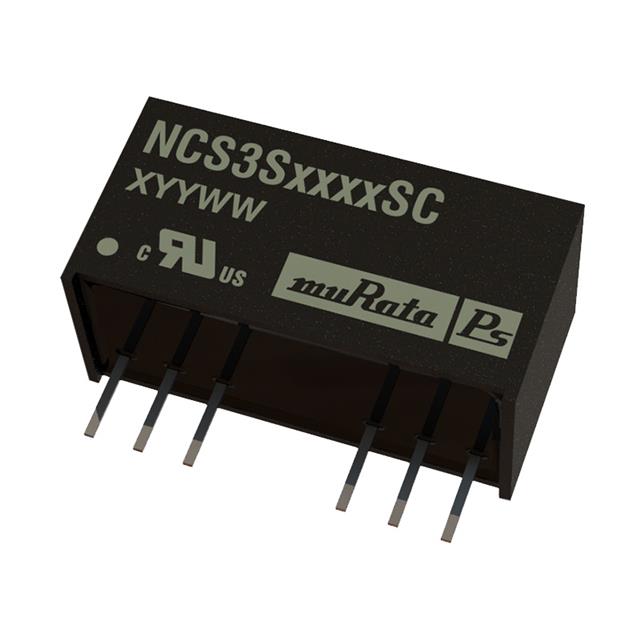

NCS3S1205SC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 3W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 3W

Technical Specifications

Parameters and characteristics commom to parts in this series

Isolated DC/DC Converters - Through Hole DC/DC TH 3W 48V-3.3V

Part	Voltage - Input (Max) [Max]	Voltage - Output 1	Features	Current - Output (Max) [Max]	Number of Outputs	Efficiency	Package / Case	Type	Applications	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Power (Watts)
Murata Power Solutions Inc. NCS3S4803SC	75 V	3.3 V	SCP	700 mA	1	74 %	8-DIP Module, 6 Leads	Isolated Module	ITE (Commercial)	18 V	85 °C	-40 °C	Through Hole	11.3 mm	22 mm	0.44 "	9.5 mm	0.37 "	0.86 in	1.5 kV	3 W
Murata Power Solutions Inc. NCS3S1205SC	36 V	5 V	SCP	600 mA	1		8-DIP Module, 6 Leads	Isolated Module	ITE (Commercial)	9 V	85 °C	-40 °C	Through Hole	11.3 mm	22 mm	0.44 "	9.5 mm	0.37 "	0.86 in	1.5 kV	3 W
Murata Power Solutions Inc. NCS3S4805SC	75 V	5 V	SCP	600 mA	1	80 %	8-DIP Module, 6 Leads	Isolated Module	ITE (Commercial)	18 V	85 °C	-40 °C	Through Hole	11.3 mm	22 mm	0.44 "	9.5 mm	0.37 "	0.86 in	1.5 kV	3 W
Murata Power Solutions Inc. NCS3S4812SC	75 V	12 V	SCP	250 mA	1	81 %	8-DIP Module, 6 Leads	Isolated Module	ITE (Commercial)	18 V	85 °C	-40 °C	Through Hole	11.3 mm	22 mm	0.44 "	9.5 mm	0.37 "	0.86 in	1.5 kV	3 W
Murata Power Solutions Inc. NCS3S4815SC	75 V	15 V	SCP	200 mA	1	83 %	8-DIP Module, 6 Leads	Isolated Module	ITE (Commercial)	18 V	85 °C	-40 °C	Through Hole	11.3 mm	22 mm	0.44 "	9.5 mm	0.37 "	0.86 in	1.5 kV	3 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - Through Hole DC/DC TH 3W 48V-3.3V
