4502-440-SS-20

Active

RAF Electronic Hardware

3/16 HEX X 5/16 LENGTH

Search across all available documentation for this part.

Active

RAF Electronic Hardware

3/16 HEX X 5/16 LENGTH

Technical Specifications

Parameters and characteristics for this part

Part	Between Board Height	Between Board Height	Plating	Threaded/Unthreaded	Gender	Screw, Thread Size	Length - Overall	Length - Overall	Length - Overall	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Type	Between Board Height	Diameter - Outside [custom]	Length - Overall [x]	Color
RAF Electronic Hardware 4502-440-SS-20	7.94 mm	0.313 "	Passivated	Threaded	Female Male	#4-40	0.5 in	0.5 in	12.7 mm	4.76 mm	0.188 "	Stainless Steel	Hex Standoff
RAF Electronic Hardware 4502-440-S-12	7.95 mm	0.313 "	Zinc	Threaded	Female Male	#4-40	0.5 in	0.5 in	12.7 mm	0.188 in 4.78 mm			Hex Standoff	0.3125 in	0.1875 in
RAF Electronic Hardware 4502-440-B	7.94 mm	0.313 "		Threaded	Female	#4-40			7.94 mm	4.76 mm	0.188 "	Brass	Hex Standoff			0.313 in
RAF Electronic Hardware 4502-440-B-12	7.94 mm	0.313 "	Chromate Zinc	Threaded	Female	#4-40			7.94 mm	4.76 mm	0.188 "	Brass	Hex Standoff			0.313 in	Clear
RAF Electronic Hardware 4502-440-AL-7	7.95 mm	0.313 "	Iridite	Threaded	Female Male	#4-40	0.5 in	0.5 in	12.7 mm	0.188 in 4.78 mm		Aluminum	Hex Standoff	0.3125 in	0.1875 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

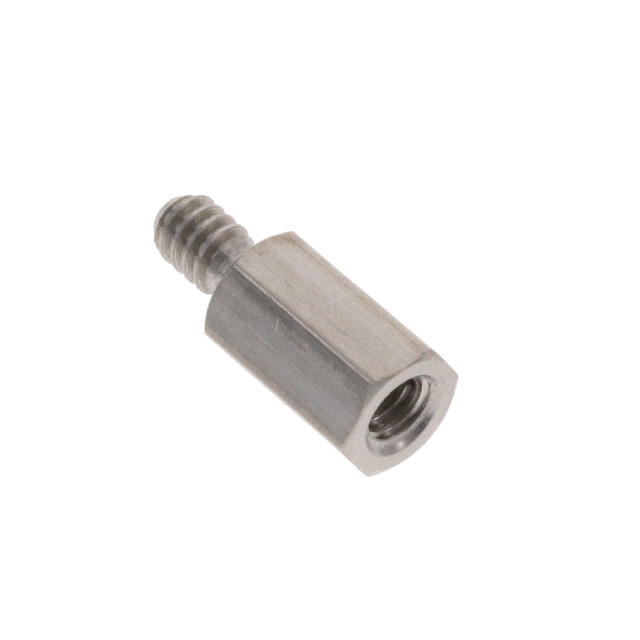

Hex Standoff Threaded #4-40 Stainless Steel 0.313" (7.94mm)
