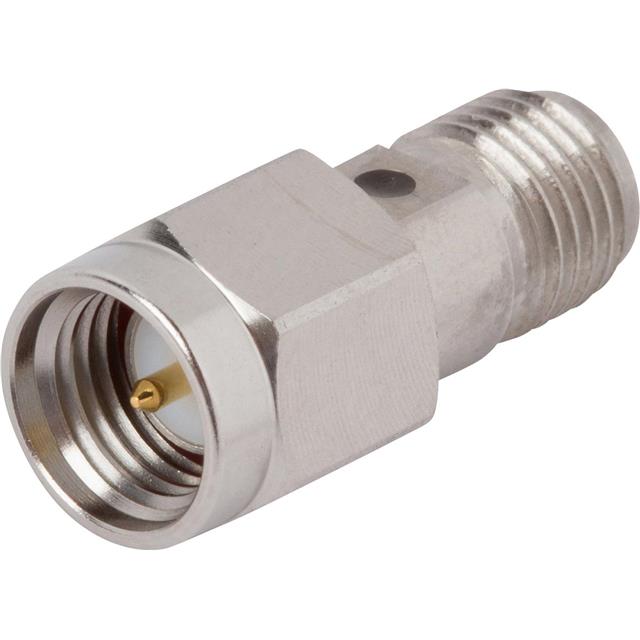

SF2997-6003

Active

Amphenol SV Microwave

CONN ADAPT PLUG-JACK SMA 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT PLUG-JACK SMA 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	SF2997-6003

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Adapter Type	Mating Cycles	Adapter Series	Convert From (Adapter End)	Center Contact Plating	Frequency - Max [Max]	Impedance	Dielectric Material	Body Material	Center Contact Material	Style	Convert To (Adapter End)	Conversion Type	Mounting Type
Amphenol SV Microwave SF2997-6003	Plug to Jack	500	SMA to SMA	SMA Plug Male Pin	Gold	18 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	Stainless Steel	Beryllium Copper	Straight	Female Socket SMA Jack	Same Series	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
