HB-48-0

Active

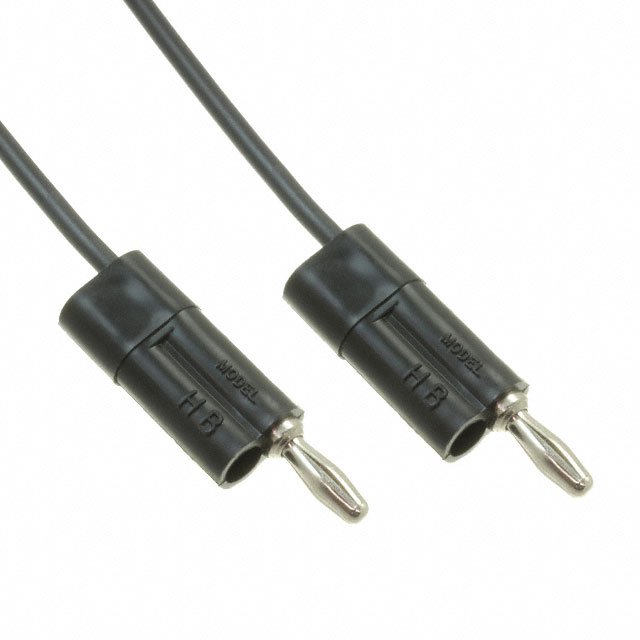

TEST LEAD, 4MM BANANA PLUG TO 4MM BANANA PLUG, BLACK, 70 V, 15 A, 1.219 M

Active

TEST LEAD, 4MM BANANA PLUG TO 4MM BANANA PLUG, BLACK, 70 V, 15 A, 1.219 M

Description

General part information

48.0" (1219.20mm) Banana Plug, Single, Stackable To Banana Plug, Single, Stackable Patch Cord 5000VDC (5kV)

Parameters and characteristics for this part

Specification	HB-48-0

1st Connector	Stackable, Single, Banana Plug
2nd Connector	Banana Plug, Stackable, Single
Cable Length	48 in
Configuration	Banana to Banana
Contents	Black
Current Rating	15 A
Lead Quantity	1
Material - Insulation	PVC, Poly-Vinyl Chloride
Stacking Method	Front Stacking (Both Connectors)
Type	Patch Cord
Voltage - Rated	5 kV
Wire Gauge	18 AWG

Part	Voltage - Rated	Wire Gauge	Lead Quantity	Contents	Current Rating	Type	2nd Connector	1st Connector	Stacking Method	Cable Length	Material - Insulation	Configuration
Pomona Electronics HB-48-6	5 kV	18 AWG	1	Blue	15 A	Patch Cord	Banana Plug Single Stackable	Banana Plug Single Stackable	Front Stacking (Both Connectors)	48 in	Poly-Vinyl Chloride PVC	Banana to Banana
Pomona Electronics HB-48-0	5 kV	18 AWG	1	Black	15 A	Patch Cord	Banana Plug Single Stackable	Banana Plug Single Stackable	Front Stacking (Both Connectors)	48 in	Poly-Vinyl Chloride PVC	Banana to Banana
Pomona Electronics HB-48-2	5 kV	18 AWG	1	Red	15 A	Patch Cord	Banana Plug Single Stackable	Banana Plug Single Stackable	Front Stacking (Both Connectors)	48 in	Poly-Vinyl Chloride PVC	Banana to Banana
