BNC5-P-C-MN-ST-CA1

Active

Samtec Inc.

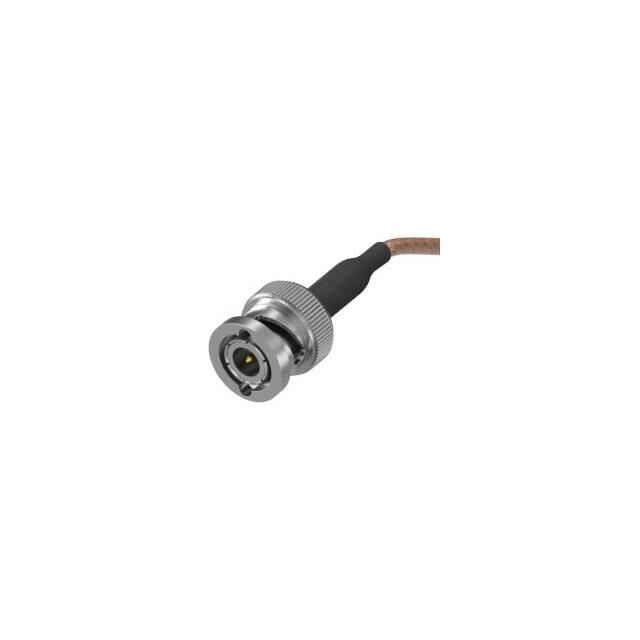

CONN BNC PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BNC PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	BNC5-P-C-MN-ST-CA1

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	2 Ferrules, 1 Connector, 1 Contact, 1 Insulator
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Shield Termination	Body Material	Impedance	Frequency - Max [Max]	Dielectric Material	Voltage Rating	Housing Color	Includes	Fastening Type	Number of Ports	Connector Type	Connector Style	Mounting Type	Cable Group	Center Contact Material	Body Finish	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination
Samtec Inc. BNC5-P-C-GN-ST-CA1	Crimp	Brass	50 Ohms	4 GHz	Polytetrafluoroethylene (PTFE)	500 V	Silver	1 Connector 1 Contact 1 Insulator 2 Ferrules	Bayonet Lock	1	Male Pin Plug	BNC	Free Hanging (In-Line)	316 RG-174	Brass	Nickel	Gold	125 °C	-65 ░C	Solder
Samtec Inc. BNC5-P-C-MN-ST-CA1	Crimp	Brass	50 Ohms	4 GHz	Polytetrafluoroethylene (PTFE)	500 V	Silver	1 Connector 1 Contact 1 Insulator 2 Ferrules	Bayonet Lock	1	Male Pin Plug	BNC	Free Hanging (In-Line)	316 RG-174	Brass	Nickel	Gold	125 °C	-65 ░C	Solder
Samtec Inc. BNC5-P-C-HN-ST-CA1	Crimp	Brass	50 Ohms	4 GHz	Polytetrafluoroethylene (PTFE)	500 V	Silver	1 Connector 1 Contact 1 Insulator 2 Ferrules	Bayonet Lock	1	Male Pin Plug	BNC	Free Hanging (In-Line)	316 RG-174	Brass	Nickel	Gold	125 °C	-65 ░C	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.40

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
