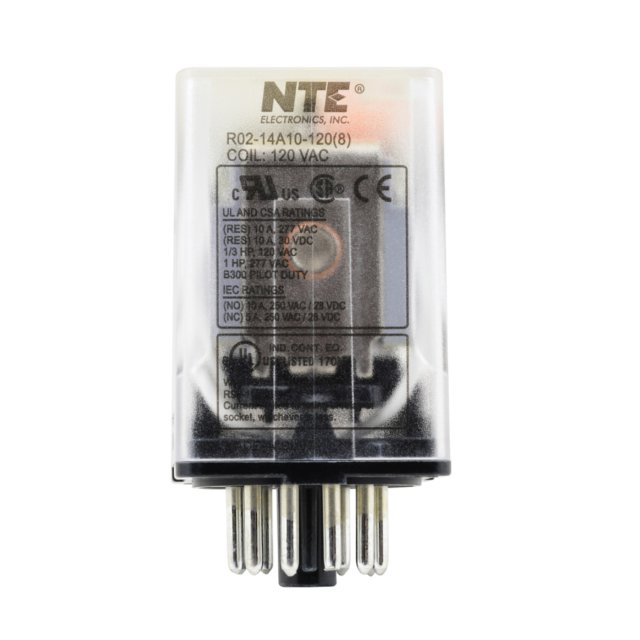

R02-14A10-120

Active

NTE Electronics, Inc

RELAY GEN PURPOSE 3PDT 10A 120V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

RELAY GEN PURPOSE 3PDT 10A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	R02-14A10-120

Coil Voltage	120 VAC
Contact Form	3PDT (3 Form C)
Contact Rating (Current)	10 A
Operate Time	25 ms
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Relay Type	General Purpose
Release Time	20 ms
Termination Style	Plug In, 11 Pin (Octal)

Part	Coil Voltage	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Termination Style	Relay Type	Release Time	Contact Form	Operate Time	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]
NTE Electronics, Inc R02-14A10-120	120 VAC	-10 °C	50 °C	Plug In 11 Pin (Octal)	General Purpose	20 ms	3PDT (3 Form C)	25 ms	10 A
NTE Electronics, Inc R02-14D10-6				Plug In 11 Pin (Octal)	General Purpose	20 ms	3PDT (3 Form C)	25 ms	10 A	-10 °C	60 °C
NTE Electronics, Inc R02-14D10-110	110 VDC			Plug In 11 Pin (Octal)	General Purpose	20 ms	3PDT (3 Form C)	25 ms	10 A	-10 °C	60 °C
NTE Electronics, Inc R02-14A10-24	24 VAC	-10 °C	50 °C	Plug In 11 Pin (Octal)	General Purpose	20 ms	3PDT (3 Form C)	25 ms	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay 3PDT (3 Form C) 120VAC Coil

Technical documentation and resources

No documents available
