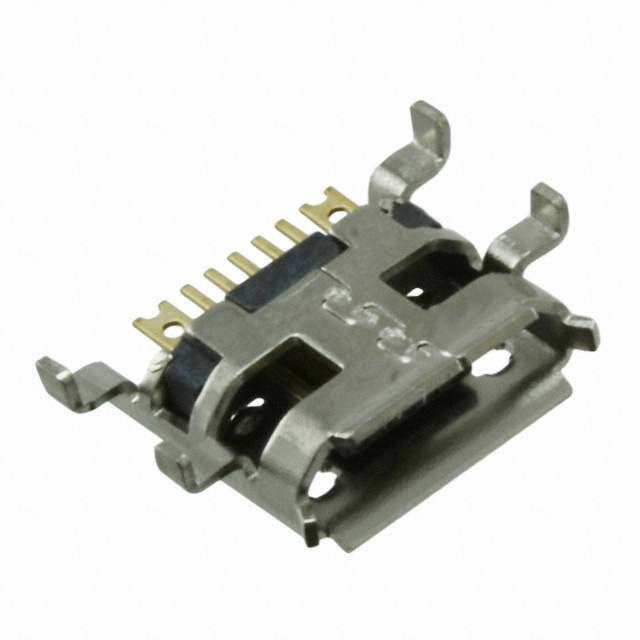

10103593-0001LF

Active

Amphenol ICC (FCI)

CONN RCPT USB2.0 MICRO B SMD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT USB2.0 MICRO B SMD

Technical Specifications

Parameters and characteristics for this part

Specification	10103593-0001LF

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating (Amps)	1.8 A
Features	Solder Retention
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal, Mid Mount
Mounting Type	Board Edge, Cutout, Through Hole, Right Angle, Surface Mount
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	100 VAC

Part	Number of Contacts	Mounting Type	Mounting Feature	Shell/Shielding Material	Current Rating (Amps)	Mating Cycles	Termination	Features	Shielding	Material Flammability Rating	Connector Type	Insulation Color	Voltage - Rated	Specifications	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Gender
Amphenol ICC (FCI) 10103593-0001LF	5	Board Edge Cutout Surface Mount Through Hole Right Angle	Horizontal Mid Mount	Stainless Steel	1.8 A	10000	Solder	Solder Retention	Shielded	UL94 V-0	USB - micro B	Black	100 VAC	USB 2.0	Gold	-30 ░C	80 C	1	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 2.0 Receptacle Connector 5 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
