H3BWH-2618M

Active

Assmann WSW Components

IDC CBL - HHSR26H/AE26M/HHPL26H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR26H/AE26M/HHPL26H

Technical Specifications

Parameters and characteristics for this part

Specification	H3BWH-2618M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Strain Relief (Socket), Polarizing Key (Plug), Flange
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	26
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Rows	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Positions	Cable Termination	Length	Length	Length	Features	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Color
Assmann WSW Components H3BWH-2606G	0.1 in	2.54 mm	Gold	2	Socket to Plug	15 µin	0.38 µm	Unshielded	26	IDC	152.4 mm	6 "	0.5 '	Flange Polarizing Key (Plug) Strain Relief (Socket)	0.05 "	1.27 mm
Assmann WSW Components H3BWH-2618M	0.1 in	2.54 mm	Gold	2	Socket to Plug	15 µin	0.38 µm	Unshielded	26	IDC				Flange Polarizing Key (Plug) Strain Relief (Socket)	0.05 "	1.27 mm	457.2 mm	1.5 ft	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

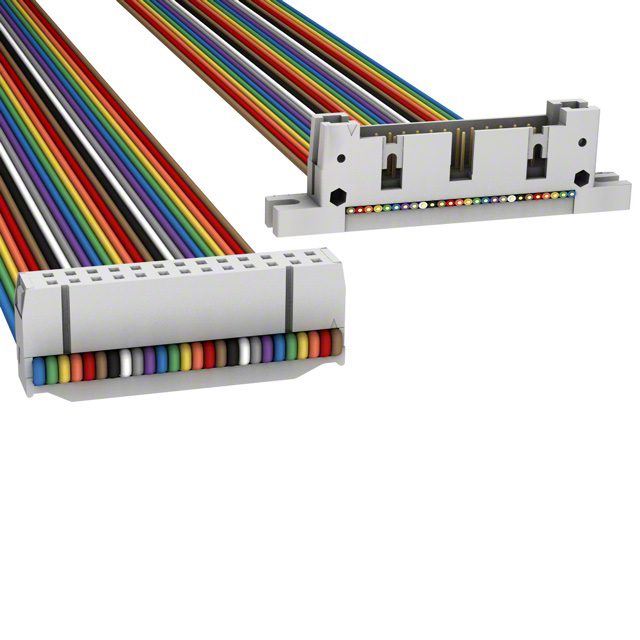

26 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
