A9BBA-0503F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFF05A/AF05/AFF05A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A9BBA-0503F | A9BBA Series |
|---|---|---|
| Contact Termination | Receptacle to Receptacle | Receptacle to Receptacle |
| Length | 76.2 mm | 76.2 - 203.2 mm |
| Length | - | 101.6 - 127 mm |
| Length | - | 6 - 8 in |
| Length [x] | 3 in | 3 - 5 " |
| Number of Positions | - | 2 - 20 |
| Number of Positions | - | 16 |
| Pitch [x] | 2.54 mm | 1.27 - 2.54 mm |
| Pitch [x] | 0.1 in | 0.05 - 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.29 | |
| 10 | $ 6.87 | |||
| 25 | $ 6.38 | |||
| 50 | $ 6.03 | |||
| 100 | $ 5.70 | |||
| 250 | $ 5.29 | |||
| 500 | $ 5.00 | |||
| 1000 | $ 4.73 | |||
A9BBA Series
FLEX CABLE - AFF15A/AF15/AFF15A
...
| Part | Number of Positions | Length [x] | Length [x] | Contact Termination | Pitch [x] | Pitch [x] | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A9BBA-1504F | 15 | 101.6 mm | 4 " | Receptacle to Receptacle | 2.54 mm | 0.1 in | |||
TE Connectivity AMP Connectors A9BBA-1108F | 11 | Receptacle to Receptacle | 2.54 mm | 0.1 in | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9BBA-2004F | 20 | 101.6 mm | 4 " | Receptacle to Receptacle | 2.54 mm | 0.1 in | |||
TE Connectivity AMP Connectors A9BBA-1106F | 11 | Receptacle to Receptacle | 2.54 mm | 0.1 in | 152.4 mm | 6 in | |||
TE Connectivity AMP Connectors A9BBA-0503F | 3 in | Receptacle to Receptacle | 2.54 mm | 0.1 in | 76.2 mm | ||||
TE Connectivity AMP Connectors A9BBA-0902F | 9 | Receptacle to Receptacle | 2.54 mm | 0.1 in | |||||
TE Connectivity AMP Connectors A9BBA-0803E | 8 | 3 in | Receptacle to Receptacle | 1.27 mm | 0.05 in | 76.2 mm | |||
TE Connectivity AMP Connectors A9BBA-1805F | 18 | 127 mm | 5 in | Receptacle to Receptacle | 2.54 mm | 0.1 in | |||
TE Connectivity AMP Connectors A9BBA-1408F | 14 | Receptacle to Receptacle | 2.54 mm | 0.1 in | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9BBA-0806E | 8 | Receptacle to Receptacle | 1.27 mm | 0.05 in | 152.4 mm | 6 in |
Description
General part information
A9BBA Series

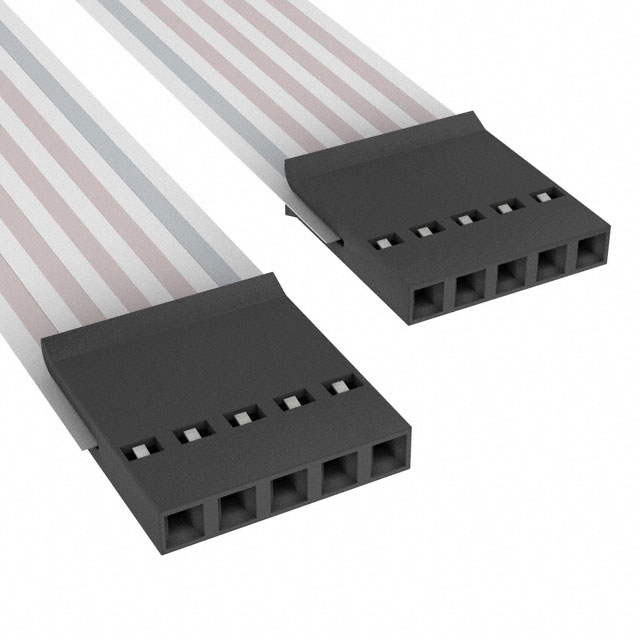

5 Position Flat Flex Cable Assembly Receptacle to Receptacle 3.00" (76.20mm)
