SDM02M30DCP3-7
Active400MA DUAL COMMON CATHODE SCHOTTKY BARRIER DIODE DIE SIZE PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
SDM02M30DCP3-7
Active400MA DUAL COMMON CATHODE SCHOTTKY BARRIER DIODE DIE SIZE PACKAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDM02M30DCP3-7 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 400 mA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |

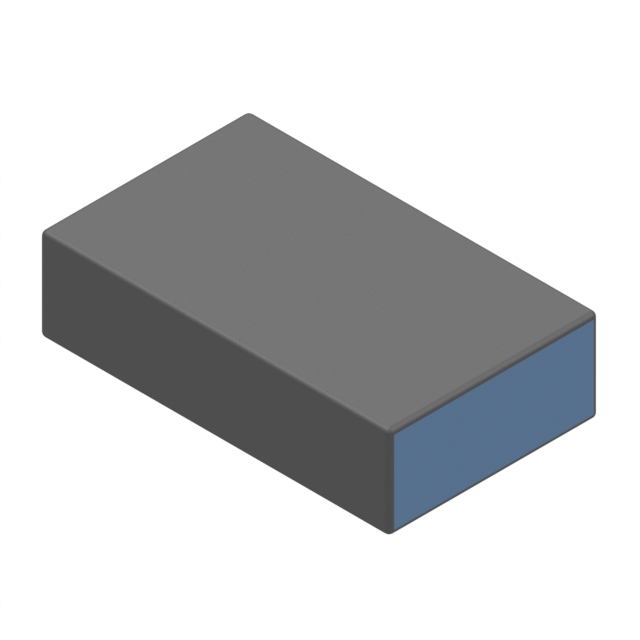

| Package / Case | 3-XFDFN |
| Reverse Recovery Time (trr) | 2.99 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | X3-DSN1006-3 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 750 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.06 | |
| 10000 | $ 0.05 | |||
| 15000 | $ 0.05 | |||
| 25000 | $ 0.05 | |||
| 35000 | $ 0.04 | |||
| 50000 | $ 0.04 | |||
| 125000 | $ 0.04 | |||
| 250000 | $ 0.04 | |||
Description
General part information
SDM02M30DCP3 Series
The SDM02M30DCP3 is a 30V Dual Common Cathode Schottky Barrier Diodes that is optimized for low capacitance and low leakage current. It’s housed in a compact die size package that occupies only 0.6mm2 board space with very low profile. The low thermal resistance enables designers to meet design challenges of increasing efficiency while reducing board space. It is ideally suited for use in portable applications.
