64-4092PBF

Obsolete

Infineon Technologies

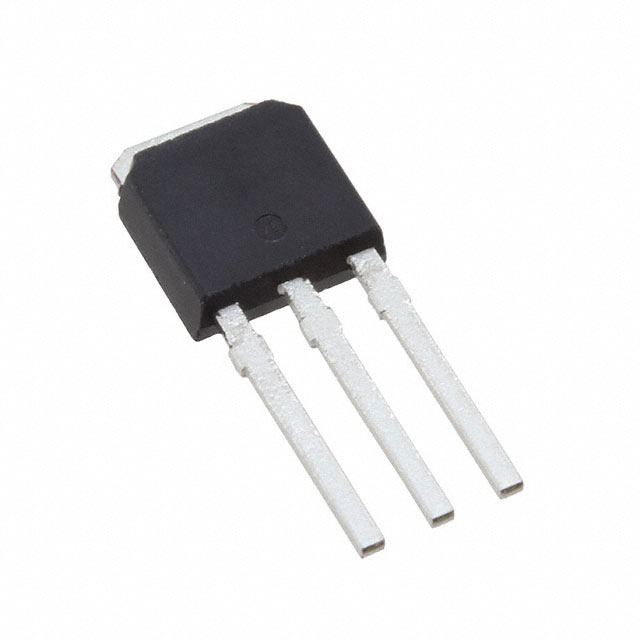

MOSFET N-CH 55V 28A I-PAK

Search across all available documentation for this part.

Obsolete

Infineon Technologies

MOSFET N-CH 55V 28A I-PAK

Technical Specifications

Parameters and characteristics for this part

Specification	64-4092PBF

Current - Continuous Drain (Id) @ 25°C	28 A
Drain to Source Voltage (Vdss)	55 V
Drive Voltage (Max Rds On, Min Rds On) [Max]	4 V
Drive Voltage (Max Rds On, Min Rds On) [Min]	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	25 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	880 pF
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	IPAK, TO-251-3 Short Leads, TO-251AA
Power Dissipation (Max)	68 W
Rds On (Max) @ Id, Vgs	40 mOhm
Supplier Device Package	IPAK
Technology	MOSFET (Metal Oxide)
Vgs (Max)	16 V
Vgs(th) (Max) @ Id	2 V

Part	Rds On (Max) @ Id, Vgs	FET Type	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs (Max)	Power Dissipation (Max)	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds [Max]	Package / Case	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Vgs(th) (Max) @ Id	Mounting Type
Infineon Technologies 64-4092PBF	40 mOhm	N-Channel	55 V	28 A	25 nC	16 V	68 W	IPAK	880 pF	IPAK TO-251-3 Short Leads TO-251AA	4 V	10 V	-55 °C	175 ░C	MOSFET (Metal Oxide)	2 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 55 V 28A (Tc) 68W (Tc) Through Hole IPAK
