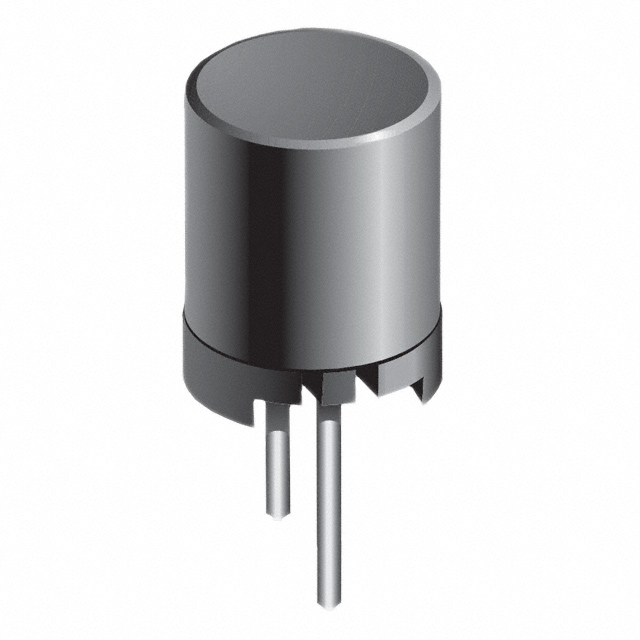

FSR1013-333KL
ObsoleteBourns Inc.
FIXED IND 33MH 25MA 115 OHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSR1013-333KL
ObsoleteBourns Inc.
FIXED IND 33MH 25MA 115 OHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FSR1013-333KL |
|---|---|
| Current Rating (Amps) | 25 mA |
| DC Resistance (DCR) | 115 Ohm |
| Frequency - Self Resonant | 125 kHz |
| Height - Seated (Max) | 13.5 mm |
| Height - Seated (Max) [Max] [z] | 0.531 " |
| Inductance | 33 mH |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Vertical Cylinder |
| Q @ Freq | 40, 79.6 kHz |
| Shielding | Shielded |
| Size / Dimension [diameter] | 10.5 mm, 0.413 in |
| Tolerance | 10 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FSR1013 Series
33 mH Shielded Drum Core, Wirewound Inductor 25 mA 115Ohm Max Radial, Vertical Cylinder
