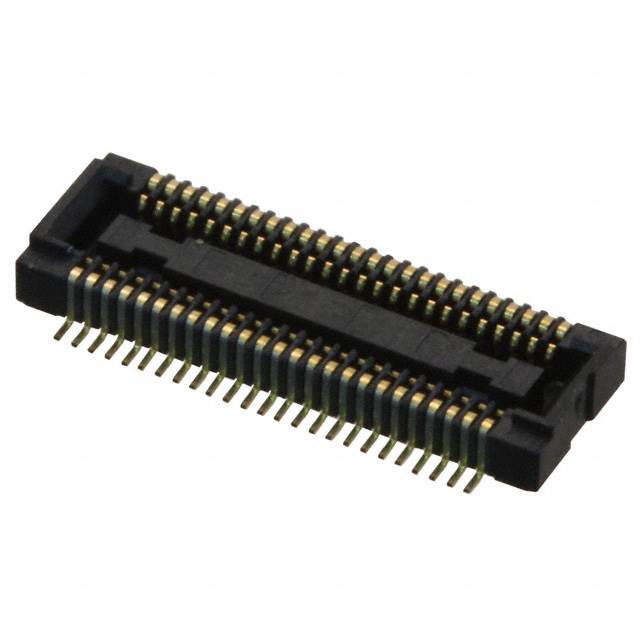

AXK750147G

Active

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK750147G

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Height Above Board	0.059 in
Height Above Board	1.5 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions	Connector Type	Height Above Board	Height Above Board	Mated Stacking Heights	Mounting Type
Panasonic Electric Works AXK750147G	Gold	0.016 in	0.4 mm	2	50	Center Strip Outer Edge Contacts Socket	0.059 in	1.5 mm	1.5 mm	Surface Mount
Panasonic Electric Works AXK750147A	Gold	0.016 in	0.4 mm	2	50	Center Strip Outer Edge Contacts Socket	0.059 in	1.5 mm	1.5 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
