A3DKB-1006M
ActiveTE Connectivity AMP Connectors
IDC CABLE - AKR10B/AE10M/APK10B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
A3DKB-1006M
ActiveTE Connectivity AMP Connectors
IDC CABLE - AKR10B/AE10M/APK10B
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3DKB-1006M | A3DKB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | Socket to Plug | Socket to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key (Plug), Polarizing Key, Strain Relief (Socket) | Polarizing Key (Plug), Polarizing Key, Strain Relief (Socket) |
| Length | 152.4 mm | 152.4 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 1.5 - 3 ft |
| Length | - | 457.2 - 914.4 mm |
| Number of Positions | 10 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.57 | |
| 10 | $ 12.90 | |||
| 25 | $ 11.97 | |||
| 50 | $ 11.32 | |||
| 100 | $ 10.70 | |||
| 250 | $ 9.93 | |||
| 500 | $ 9.39 | |||
| 1000 | $ 9.03 | |||
A3DKB Series
IDC CABLE - AKR40B/AE40G/APK40B
| Part | Contact Finish | Number of Positions | Number of Rows | Shielding | Connector Type | Features | Pitch - Connector | Pitch - Connector | Contact Finish Thickness | Contact Finish Thickness | Length [x] | Length [x] | Cable Termination | Pitch - Cable | Pitch - Cable | Color | Length | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A3DKB-4036G | Gold | 40 | 2 | Unshielded | Socket to Plug | Polarizing Key, Polarizing Key (Plug), Strain Relief (Socket) | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 3 ft | 914.4 mm | IDC | 0.05 " | 1.27 mm | |||||
TE Connectivity AMP Connectors A3DKB-3018M | Gold | 30 | 2 | Unshielded | Socket to Plug | Polarizing Key, Polarizing Key (Plug), Strain Relief (Socket) | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 1.5 ft | 457.2 mm | IDC | 0.05 " | 1.27 mm | Multiple, Ribbon | ||||
TE Connectivity AMP Connectors A3DKB-2606M | Gold | 26 | 2 | Unshielded | Socket to Plug | Polarizing Key, Polarizing Key (Plug), Strain Relief (Socket) | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 0.05 " | 1.27 mm | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' | |||
TE Connectivity AMP Connectors A3DKB-2636G | Gold | 26 | 2 | Unshielded | Socket to Plug | Polarizing Key, Polarizing Key (Plug), Strain Relief (Socket) | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 3 ft | 914.4 mm | IDC | 0.05 " | 1.27 mm | |||||
TE Connectivity AMP Connectors A3DKB-1006M | Gold | 10 | 2 | Unshielded | Socket to Plug | Polarizing Key, Polarizing Key (Plug), Strain Relief (Socket) | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 0.05 " | 1.27 mm | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' | |||
TE Connectivity AMP Connectors A3DKB-2636M | Gold | 26 | 2 | Unshielded | Socket to Plug | Polarizing Key, Polarizing Key (Plug), Strain Relief (Socket) | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 3 ft | 914.4 mm | IDC | 0.05 " | 1.27 mm | Multiple, Ribbon | ||||
TE Connectivity AMP Connectors A3DKB-3406M | Gold | 34 | 2 | Unshielded | Socket to Plug | Polarizing Key, Polarizing Key (Plug), Strain Relief (Socket) | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 0.05 " | 1.27 mm | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' | |||
TE Connectivity AMP Connectors A3DKB-1406M | Gold | 14 | 2 | Unshielded | Socket to Plug | Polarizing Key, Polarizing Key (Plug), Strain Relief (Socket) | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 0.05 " | 1.27 mm | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' | |||
TE Connectivity AMP Connectors A3DKB-3406G | Gold | 34 | 2 | Unshielded | Socket to Plug | Polarizing Key, Polarizing Key (Plug), Strain Relief (Socket) | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 0.05 " | 1.27 mm | 152.4 mm | 6 " | 0.5 ' | ||||
TE Connectivity AMP Connectors A3DKB-4006G | Gold | 40 | 2 | Unshielded | Socket to Plug | Polarizing Key, Polarizing Key (Plug), Strain Relief (Socket) | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 0.05 " | 1.27 mm | 152.4 mm | 6 " | 0.5 ' |
Description
General part information
A3DKB Series

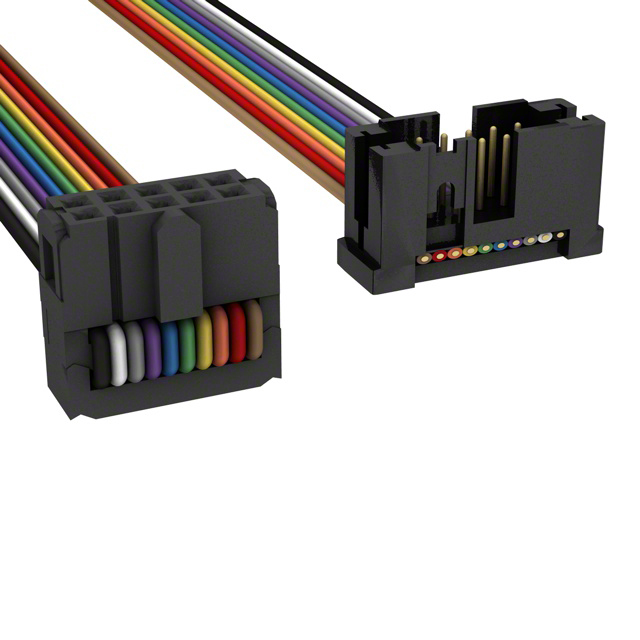

10 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
