Technical Specifications
Parameters and characteristics for this part
| Specification | TPD4F003DQDR |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Attenuation Value | 25 dB |
| Center / Cutoff Frequency | 200 MHz |
| ESD Protection | True |
| Filter Order | 2nd |
| Height [z] | 0.031 " |
| Height [z] | 0.79 mm |
| Mounting Type | Surface Mount |
| Number of Channels | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

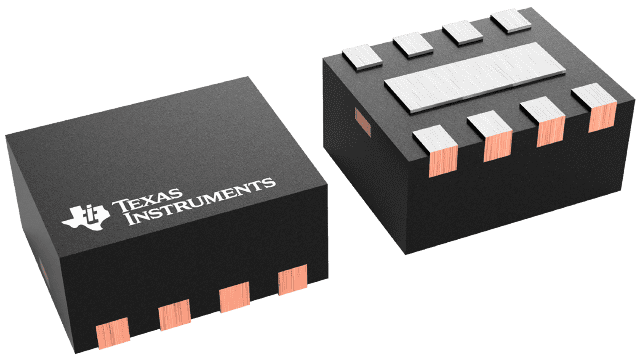

| Package / Case | 8-WFDFN Exposed Pad |
| Resistance - Channel (Ohms) | 100 Ohms |
| Size / Dimension [x] | 1.7 mm |
| Size / Dimension [x] | 0.067 in |
| Size / Dimension [y] | 1.35 mm |
| Size / Dimension [y] | 0.053 in |
| Technology | RC (Pi) |
| Type | Low Pass |
| Values | 8.5 pF, 100 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| CHIPMALL.COM LIMITED | N/A | 5 | $ 0.15 | |
| 50 | $ 0.17 | |||
| 150 | $ 0.11 | |||
| 500 | $ 0.13 | |||
| 2500 | $ 0.12 | |||
| 3000 | $ 0.08 | |||
| 6000 | $ 0.08 | |||
| DigiKey | N/A | 1 | $ 0.62 | |
| 10 | $ 0.50 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.33 | |||
| 3000 | $ 0.30 | |||
| 6000 | $ 0.28 | |||
| 9000 | $ 0.27 | |||
| 15000 | $ 0.26 | |||
| 21000 | $ 0.25 | |||
| 30000 | $ 0.25 | |||
| Digikey | Cut Tape (CT) | 1 | $ 0.62 | |
| 10 | $ 0.60 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.32 | |||
| Digi-Reel® | 1 | $ 0.62 | ||
| 10 | $ 0.60 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.32 | |||
| Tape & Reel (TR) | 3000 | $ 0.30 | ||
| 6000 | $ 0.28 | |||
| 15000 | $ 0.27 | |||
| 30000 | $ 0.26 | |||
| LCSC | N/A | 5 | $ 0.16 | |
| 50 | $ 0.13 | |||
| 150 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 3000 | $ 0.09 | |||
| 6000 | $ 0.08 | |||
| Mouser Electronics | N/A | 1 | $ 0.63 | |
| 10 | $ 0.44 | |||
| 100 | $ 0.39 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.34 | |||
| 3000 | $ 0.30 | |||
| Semour Electronics Co Ltd | N/A | 1 | $ 0.12 | |
| 200 | $ 0.10 | |||
| 1500 | $ 0.08 | |||
| 3000 | $ 0.07 | |||
| Texas Instruments | LARGE T&R | 1 | $ 0.54 | |
| 100 | $ 0.41 | |||
| 250 | $ 0.30 | |||
| 1000 | $ 0.22 | |||
| Win Source Electronics | N/A | 240 | $ 0.21 | |
| 240 | $ 0.21 | |||
| 575 | $ 0.17 | |||
| 575 | $ 0.17 | |||
| 890 | $ 0.17 | |||
| 890 | $ 0.17 | |||
| 1230 | $ 0.16 | |||
| 1230 | $ 0.16 | |||
| 1585 | $ 0.16 | |||
| 1585 | $ 0.16 | |||
| 2115 | $ 0.14 | |||
| 2115 | $ 0.14 | |||
TPD4F003 Series
4 channel 5.5-V, ±12kV ESD protection & EMI Filter with 200-MHz -3-dB
| Part | Mounting Type | Resistance - Channel (Ohms) | Height [z] | Height [z] | Technology | Filter Order | ESD Protection | Package / Case | Applications | Attenuation Value | Operating Temperature [Min] | Operating Temperature [Max] | Number of Channels | Values | Center / Cutoff Frequency | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPD4F003DQDR | Surface Mount | 100 Ohms | 0.031 " | 0.79 mm | RC (Pi) | 2nd | 8-WFDFN Exposed Pad | Data Lines for Mobile Devices | 25 dB | -40 °C | 85 °C | 4 | 8.5 pF, 100 Ohms | 200 MHz | Low Pass | 1.35 mm | 1.7 mm | 0.053 in | 0.067 in |
Description
General part information
TPD4F003 Series
The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2 (Level 4).
The TPDxF003 family is specified for –40°C to 85°C operation. These filters are also packaged in space-saving 0.4-mm pitch DQD packages.
The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2 (Level 4).
