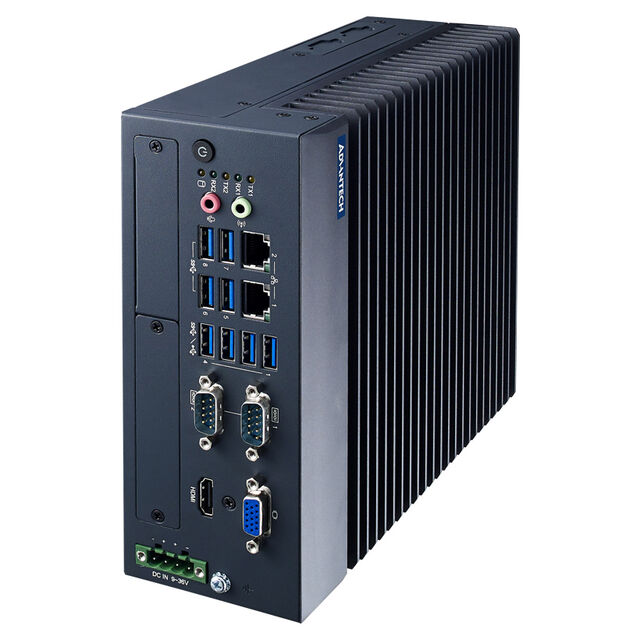

MIC-770W-20A1
ActiveAdvantech Corp
SBC 3.2GHZ 56 CORE 64GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
MIC-770W-20A1
ActiveAdvantech Corp
SBC 3.2GHZ 56 CORE 64GB/0GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MIC-770W-20A1 |
|---|---|
| Core Processor | Xeon W LGA1200, i5, Intel 10th Gen Core i9, i3, i7 |
| Ethernet | RJ45, GbE |
| Ethernet | 2 |
| Expansion Site/Bus | mSATA, mPCIe, Audio |
| Form Factor | COM Express Compact |
| Number of Cores | 4, 2, 10, 8, 6 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 65 W, 35 W |
| RAM Capacity/Installed | - |
| RAM Capacity/Installed | 64 GB |
| RS-232 (422, 485) | 6 |
| Size / Dimension [x] | 9.06 in |
| Size / Dimension [x] | 230.12 mm |
| Size / Dimension [y] | 192.02 mm |
| Size / Dimension [y] | 7.56 in |
| Speed | 3.7 GHz, 2.6 GHz, 3.2 GHz, 3.6 GHz, 1.8 GHz, 3.1 GHz, 2.2 GHz, 2.9 GHz, 2.1 GHz, 2.4 GHz, 3 GHz |
| Storage Interface | HDD, SSD, mSATA |
| USB | USB 3.2 (8) |
| Video Outputs | VGA, Multi-Display, HDMI |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1076.26 | |
Description
General part information
MIC-770 Series
Single Board Computer 1.8GHz, 2.1GHz, 2.2GHz, 2.4GHz, 2.6GHz, 2.9GHz, 3GHz, 3.1GHz, 3.2GHz, 3.6GHz, 3.7GHz 2/4/6/8/10 Core 64GB/- RAM Intel 10th Gen Core i9/i7/i5/i3/Xeon W LGA1200
Documents
Technical documentation and resources
No documents available
