TA1-1F-DC-1

Active

Switch Components

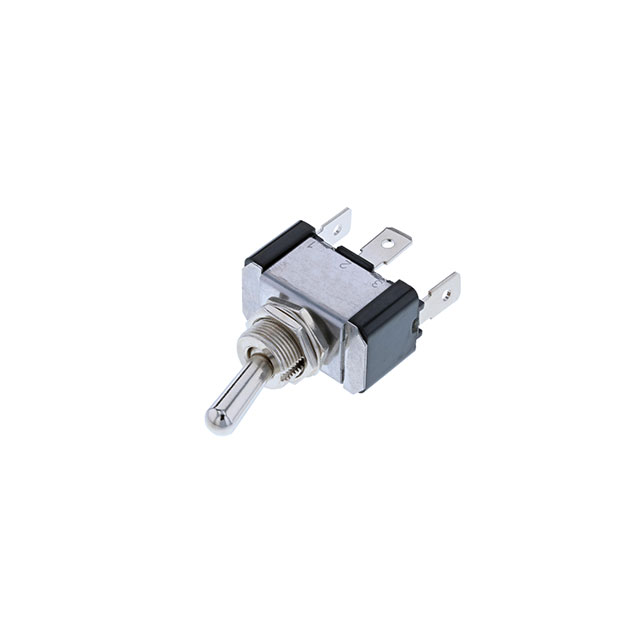

SWITCH TOGGLE SPDT 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPDT 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TA1-1F-DC-1

Actuator Length [x]	16.5 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Panel Cutout Dimensions [diameter]	Illumination	Bushing Thread	Bushing Thread	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Electrical Life	Voltage Rating - DC	Termination Style	Switch Function	Actuator Length [x]	Circuit
Switch Components TA1-1F-DC-1	12.2 mm	Non-Illuminated	M12	0.75	Standard Round	65 °C	0 °C	20 A	6000 Cycles	12 V	Quick Connect - 0.250" (6.3mm)	On-Off-On	16.5 mm	SPDT
Switch Components TA1-1F-DC-4	12.2 mm	Non-Illuminated	M12	0.75	Standard Round	65 °C	0 °C	20 A	6000 Cycles	12 V	Screw Terminal	On-Off-On	16.5 mm	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.12

General part information

Toggle Switch SPDT Panel Mount
