60-11-4659-1674

Active

Parker Chomerics

THERM PAD 15.88MM DIA BLUE

Search across all available documentation for this part.

Active

Parker Chomerics

THERM PAD 15.88MM DIA BLUE

Technical Specifications

Parameters and characteristics for this part

Part	Backing, Carrier	Usage	Shelf Life	Material	Shape	Outline [diameter]	Color	Thermal Conductivity	Thickness [custom]	Thickness [custom]	Type	Thickness	Thickness
Parker Chomerics 60-11-4659-T500	Fiberglass	DO-4	Indefinite	Acrylic	Round	15.88 mm	Green	2.1 W/m-K	0.254 mm	0.01 in	Insulator Pad Sheet
Parker Chomerics 60-11-4659-1674	Fiberglass	DO-4	Indefinite	Silicone	Round	15.88 mm	Blue		0.254 mm	0.01 in	Insulator Pad Sheet
Parker Chomerics 60-11-4659-T441-08	Fiberglass	DO-4	Indefinite		Round	15.88 mm	Pink	1.1 W/m-K			Insulator Pad Sheet	0.008 in	0.203 mm
Parker Chomerics 60-11-4659-1671	Fiberglass	DO-4	Indefinite	Acrylic	Round	15.88 mm	White	2.6 W/m-K			Insulator Pad Sheet	0.015 in	0.381 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

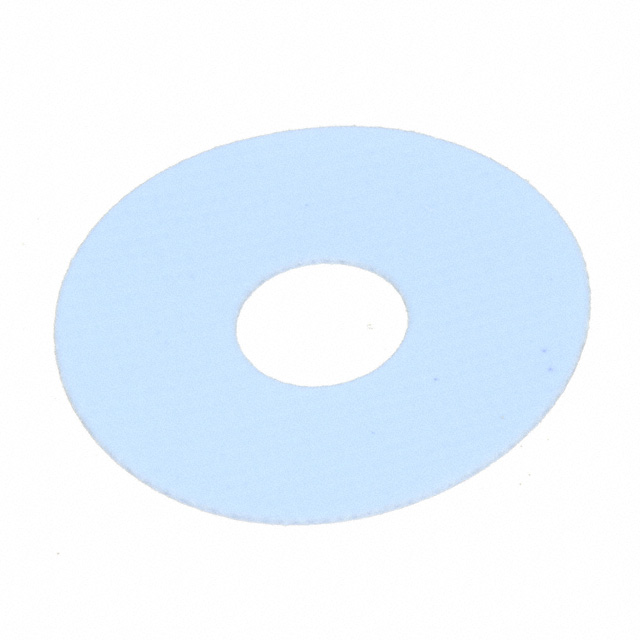

Thermal Pad Blue 15.88mm Dia Round
