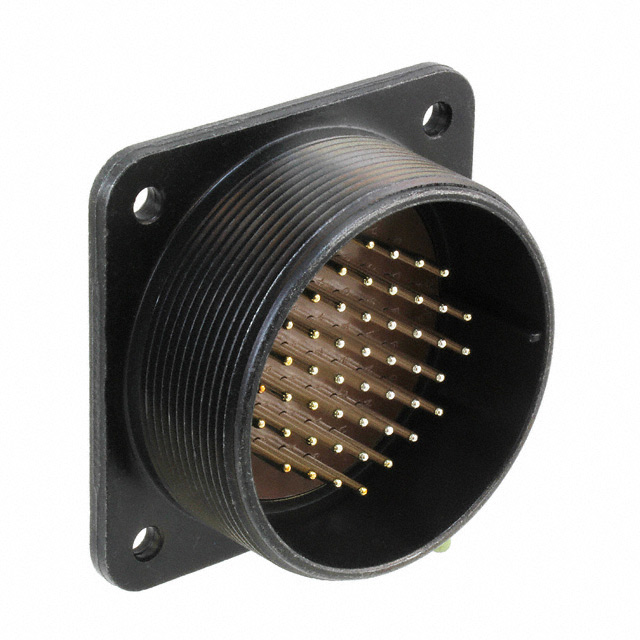

N/MS3102A36-10P

Active

JAE Electronics

CONN RCPT MALE 48P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCircular Connectors N/MS Series +1

N/MS3102A36-10P

Active

JAE Electronics

CONN RCPT MALE 48P SOLDER CUP

Deep-Dive with AI

DocumentsCircular Connectors N/MS Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N/MS3102A36-10P

Cable Opening [custom]	57.96 mm
Cable Opening [custom]	2.282 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Insert Material	Synthetic Resin
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	48
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert	36-10
Voltage Rating	500 VAC

N/MS3102 Series

Part	Current Rating (Amps)	Color	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Voltage Rating	Material Flammability Rating	Insert Material	Mounting Feature	Shell Finish	Orientation	Contact Finish - Mating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Connector Type	Contact Material	Number of Positions	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]
JAE Electronics N/MS3102A20-29PW	13 A	Black	Aluminum Alloy	-55 °C	125 °C	Metal	32.56 mm	1.282 in	500 VAC	UL94 V-0	Synthetic Resin	Flange	Zinc	W	Silver	29	20	Male Pins Receptacle	Copper Alloy
JAE Electronics N/MS3102A22-22P	46 A	Black	Aluminum Alloy	-55 °C	125 °C	Metal	35.71 mm	1.406 in	500 VAC	UL94 V-0	Synthetic Resin	Flange	Zinc	N	Silver	22	22	Male Pins Receptacle	Copper Alloy	4
JAE Electronics N/MS3102A28-21S	13 A	Black	Aluminum Alloy	-55 °C	125 °C	Metal	45.26 mm	1.782 in	500 VAC	UL94 V-0	Synthetic Resin	Flange	Zinc	N	Silver	21	28	Receptacle Female Sockets	Copper Alloy	37
JAE Electronics N/MS3102A14S-5S	13 A	Black	Aluminum Alloy	-55 °C	125 °C	Metal				UL94 V-0	Synthetic Resin	Flange	Zinc	N	Silver			Receptacle Female Sockets	Copper Alloy		14S-5	23.01 mm	0.906 in
JAE Electronics N/MS3102A18-10P	23 A	Black	Aluminum Alloy	-55 °C	125 °C	Metal	29.36 mm	1.156 in	500 VAC	UL94 V-0	Synthetic Resin	Flange	Zinc	N	Silver			Male Pins Receptacle	Copper Alloy	4	18-10
JAE Electronics N/MS3102A28-21SZ	13 A	Black	Aluminum Alloy	-55 °C	125 °C	Metal	45.26 mm	1.782 in	500 VAC	UL94 V-0	Synthetic Resin	Flange	Zinc	Z	Silver	21	28	Receptacle Female Sockets	Copper Alloy	37
JAE Electronics N/MS3102A24-10P	46 A	Black	Aluminum Alloy	-55 °C	125 °C	Metal			500 VAC	UL94 V-0	Synthetic Resin	Flange	Zinc	N	Silver	10	24	Male Pins Receptacle	Copper Alloy	7		38.91 mm	1.532 in
JAE Electronics N/MS3102A18-1P	13 A	Black	Aluminum Alloy	-55 °C	125 °C	Metal	29.36 mm	1.156 in		UL94 V-0	Synthetic Resin	Flange	Zinc	N	Silver	1	18	Male Pins Receptacle	Copper Alloy	10
JAE Electronics N/MS3102A24-11P	23 A 46 A	Black	Aluminum Alloy	-55 °C	125 °C	Metal			500 VAC	UL94 V-0	Synthetic Resin	Flange	Zinc	N	Silver			Male Pins Receptacle	Copper Alloy	9	24-11	38.91 mm	1.532 in
JAE Electronics N/MS3102A36-10P	13 A	Black	Aluminum Alloy	-55 °C	125 °C	Metal	57.96 mm	2.282 in	500 VAC	UL94 V-0	Synthetic Resin	Flange	Zinc	N	Silver			Male Pins Receptacle	Copper Alloy	48	36-10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

N/MS3102 Series

48 Position Circular Connector Receptacle, Male Pins Solder Cup
