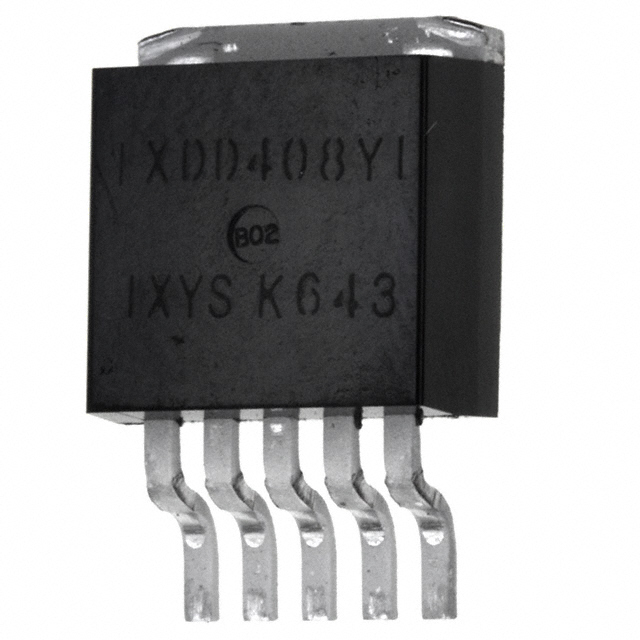

IXDD408YI

Obsolete

IXYS

IC GATE DRVR LOW-SIDE TO263

Search across all available documentation for this part.

Obsolete

IXYS

IC GATE DRVR LOW-SIDE TO263

Technical Specifications

Parameters and characteristics for this part

Specification	IXDD408YI

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	8 A
Current - Peak Output (Source, Sink) [custom]	8 A
Driven Configuration	Low-Side
Input Type	Non-Inverting
Logic Voltage - VIL, VIH	0.8 V, 3.5 V
Mounting Type	Surface Mount
Number of Drivers	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-263-6, TO-263BA, D2PAK (5 Leads + Tab)
Rise / Fall Time (Typ) [custom]	14 ns
Rise / Fall Time (Typ) [custom]	15 ns
Supplier Device Package	TO-263-5
Voltage - Supply [Max]	25 V
Voltage - Supply [Min]	4.5 V

Part	Logic Voltage - VIL, VIH	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Driven Configuration	Input Type	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Drivers	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Package / Case	Package / Case	Package / Case [y]	Package / Case [x]
IXYS IXDD408PI	0.8 V 3.5 V	8 A	8 A	Low-Side	Non-Inverting	8-DIP	4.5 V	25 V	1	Single	14 ns	15 ns	150 °C	-40 °C	Through Hole	0.3 in	8-DIP	7.62 mm
IXYS IXDD408SI	0.8 V 3.5 V	8 A	8 A	Low-Side	Non-Inverting	8-SOIC	4.5 V	25 V	1	Single	14 ns	15 ns	150 °C	-40 °C	Surface Mount		8-SOIC		3.9 mm	0.154 in
IXYS IXDD408CI	0.8 V 3.5 V	8 A	8 A	Low-Side	Non-Inverting	TO-220-5	4.5 V	25 V	1	Single	14 ns	15 ns	150 °C	-40 °C	Through Hole		TO-220-5
IXYS IXDD408YI	0.8 V 3.5 V	8 A	8 A	Low-Side	Non-Inverting	TO-263-5	4.5 V	25 V	1	Single	14 ns	15 ns	150 °C	-40 °C	Surface Mount		D2PAK (5 Leads + Tab) TO-263-6 TO-263BA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Low-Side Gate Driver IC Non-Inverting TO-263-5

Technical documentation and resources

No documents available
