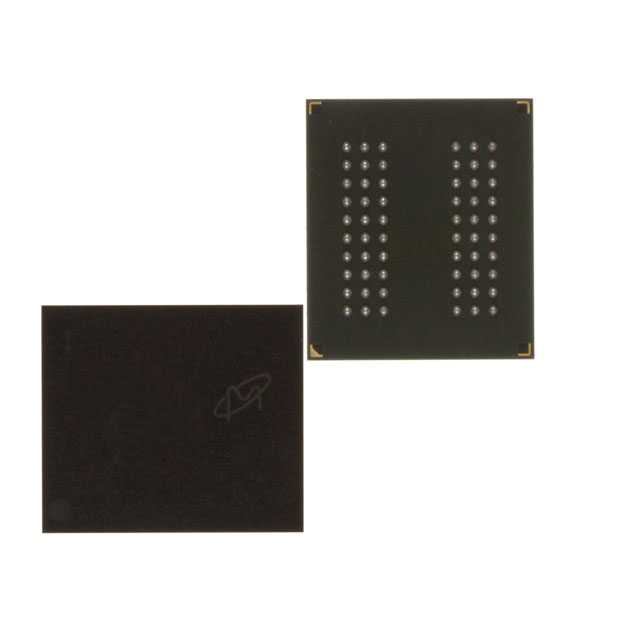

MT46H64M16LFCK-5 L IT:A

Obsolete

Micron Technology Inc.

IC DRAM 1GBIT PARALLEL 60VFBGA

Search across all available documentation for this part.

Obsolete

Micron Technology Inc.

IC DRAM 1GBIT PARALLEL 60VFBGA

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Memory Interface	Mounting Type	Memory Type	Memory Format	Memory Size	Package / Case	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Write Cycle Time - Word, Page	Voltage - Supply [Max]	Voltage - Supply [Min]	Clock Frequency	Access Time	Memory Organization	Qualification	Grade
Micron Technology Inc. MT46H64M16LFCK-5:A TR	60-VFBGA (10x11.5)	Parallel	Surface Mount	Volatile	DRAM	1 Mbit	60-VFBGA	SDRAM - Mobile LPDDR	70 °C	0 °C	15 ns	1.95 V	1.7 V	200 MHz	5 ns	64 M
Micron Technology Inc. MT46H64M16LFCK-6 IT:A TR	60-VFBGA (10x11.5)	Parallel	Surface Mount	Volatile	DRAM	1 Mbit	60-VFBGA	SDRAM - Mobile LPDDR	85 °C	-40 °C	15 ns	1.95 V	1.7 V	166 MHz	5 ns	64 M
Micron Technology Inc. MT46H64M16LFCK-5 L IT:A	60-VFBGA (10x11.5)	Parallel	Surface Mount	Volatile	DRAM	1 Mbit	60-VFBGA	SDRAM - Mobile LPDDR	85 °C	-40 °C	15 ns	1.95 V	1.7 V	200 MHz	5 ns	64 M
Micron Technology Inc. MT46H64M16LFBF-5 IT:B	60-VFBGA (8x9)	Parallel	Surface Mount	Volatile	DRAM	1 Mbit	60-VFBGA	SDRAM - Mobile LPDDR	85 °C	-40 °C	15 ns	1.95 V	1.7 V	200 MHz	5 ns	64 M
Micron Technology Inc. MT46H64M16LFBF-5 AIT:B TR	60-VFBGA (8x9)	Parallel	Surface Mount	Volatile	DRAM	1 Mbit	60-VFBGA	SDRAM - Mobile LPDDR	85 °C	-40 °C	15 ns	1.95 V	1.7 V	200 MHz	5 ns	64 M	AEC-Q100	Automotive
Micron Technology Inc. MT46H64M16LFBF-5 AIT:B	60-VFBGA (8x9)	Parallel	Surface Mount	Volatile	DRAM	1 Mbit	60-VFBGA	SDRAM - Mobile LPDDR	85 °C	-40 °C	15 ns	1.95 V	1.7 V	200 MHz	5 ns	64 M	AEC-Q100	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SDRAM - Mobile LPDDR Memory IC 1Gbit Parallel 200 MHz 5 ns 60-VFBGA (10x11.5)

Technical documentation and resources
