H8PPS-2436G

Active

Assmann WSW Components

DIP CABLE - HDP24S/AE24G/HDP24S

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CABLE - HDP24S/AE24G/HDP24S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

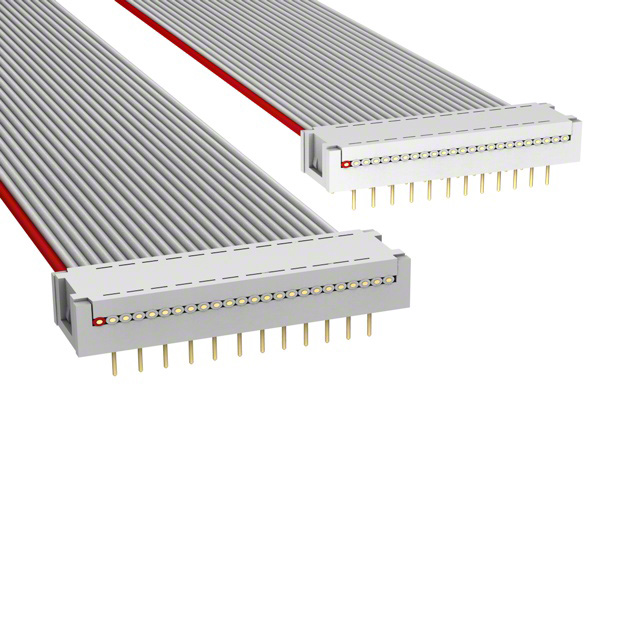

24 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)

Technical documentation and resources

Part	Number of Positions	Connector Type	Usage	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Contact Finish	Cable Termination	Number of Rows	Pitch - Connector	Pitch - Connector	Shielding	Length	Length	Length
Assmann WSW Components H8PPS-2436G	24	DIP to DIP, Reversed	Board In, Socket (0.6")	0.05 "	1.27 mm	3 ft	914.4 mm	Tin	IDC	2	0.1 in	2.54 mm	Unshielded
Assmann WSW Components H8PPS-2406G	24	DIP to DIP, Reversed	Board In, Socket (0.6")	0.05 "	1.27 mm			Tin	IDC	2	0.1 in	2.54 mm	Unshielded	152.4 mm	6 "	0.5 '
Assmann WSW Components H8PPS-2418G	24	DIP to DIP, Reversed	Board In, Socket (0.6")	0.05 "	1.27 mm	1.5 ft	457.2 mm	Tin	IDC	2	0.1 in	2.54 mm	Unshielded
