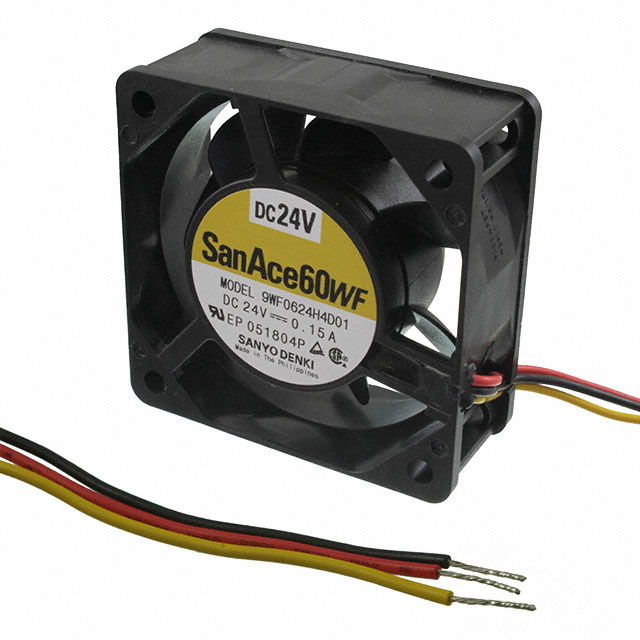

9WF0624H4D01
ActiveSanyo Denki America Inc.
FAN AXIAL 60X25MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9WF0624H4D01
ActiveSanyo Denki America Inc.
FAN AXIAL 60X25MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9WF0624H4D01 |
|---|---|
| Air Flow | 23.6 CFM |
| Air Flow | 0.661 m³/min |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 150 mA |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Ingress Protection | Oil Resistant |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 41 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 3.6 W |
| RPM | 6500 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 94.6 Pa |
| Static Pressure | 0.38 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Weight | 0.243 lb |
| Weight | 110.22 g |
| Width [y] | 25 mm |
9WF0624 Series
| Part | Bearing Type | Noise | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. | Material - Frame | Fan Type | RPM | Features | Power (Watts) | Static Pressure | Static Pressure | Ingress Protection | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Width [y] | Air Flow | Air Flow | Termination | Material - Blade | Size / Dimension [x] | Size / Dimension [y] | Approval Agency | Weight | Weight | Voltage - Rated | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sanyo Denki America Inc. | Ball | 42 dB | -20 °C | 70 °C | -20 C | 70 °C | 40000 Hrs | Plastic | Tubeaxial | 6600 RPM | Speed Sensor (Tach) | 3.6 W | 112.1 Pa | 0.45 in H2O | Oil Resistant | 150 mA | 27.6 VDC | 12 VDC | 20 mm | 24.3 CFM | 0.68 m³/min | 3 Wire Leads | Plastic | 60 mm | 60 mm | CSA TUV UL | 0.177 lb | 80.29 g | 24 VDC | |
Sanyo Denki America Inc. | Ball | 42 dB | -20 °C | 70 °C | -20 C | 70 °C | 40000 Hrs | Plastic | Tubeaxial | 6600 RPM | Locked Rotor Sensor | 3.6 W | 112.1 Pa | 0.45 in H2O | Oil Resistant | 150 mA | 27.6 VDC | 12 VDC | 20 mm | 24.3 CFM | 0.68 m³/min | 3 Wire Leads | Plastic | 60 mm | 60 mm | CSA TUV UL | 0.177 lb | 80.29 g | 24 VDC | |
Sanyo Denki America Inc. | Ball | 41 dB | -20 °C | 70 °C | -20 C | 70 °C | 40000 Hrs | Plastic | Tubeaxial | 6500 RPM | Locked Rotor Sensor | 3.6 W | 94.6 Pa | 0.38 in H2O | Oil Resistant | 150 mA | 25 mm | 23.6 CFM | 0.661 m³/min | 3 Wire Leads | Plastic | 60 mm | 60 mm | CSA TUV UL | 0.243 lb | 110.22 g | 24 VDC | |||
Sanyo Denki America Inc. | Ball | 41 dB | -20 °C | 70 °C | -20 C | 70 °C | 40000 Hrs | Plastic | Tubeaxial | 6500 RPM | Speed Sensor (Tach) | 3.6 W | 94.6 Pa | 0.38 in H2O | Oil Resistant | 150 mA | 25 mm | 23.6 CFM | 0.661 m³/min | 3 Wire Leads | Plastic | 60 mm | 60 mm | CSA TUV UL | 0.243 lb | 110.22 g | 24 VDC | |||
Sanyo Denki America Inc. | Ball | 44 dB | -20 °C | 70 °C | -20 C | 70 °C | 40000 Hrs | Plastic | Tubeaxial | 6800 RPM | Locked Rotor Sensor | 2.88 W | 94.6 Pa | 0.38 in H2O | Oil Resistant | 120 mA | 3 Wire Leads | Plastic | 60 mm | 60 mm | CSA TUV UL | 0.137 lb | 62.14 g | 24 VDC | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.24 | |
| 10 | $ 23.97 | |||
| 25 | $ 23.06 | |||
| 80 | $ 21.54 | |||
| 160 | $ 19.87 | |||
| 320 | $ 19.57 | |||
Description
General part information
9WF0624 Series
Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 23.6 CFM (0.661m³/min) 3 Wire Leads
