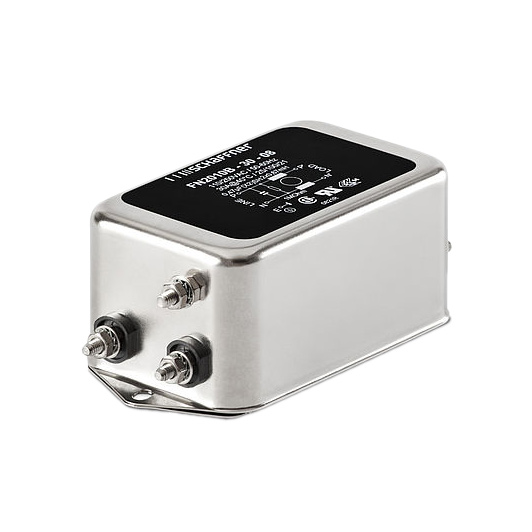

FN2010A-6-07

Active

Schaffner EMC Inc.

LINE FILTER 250VAC 6A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN2010A-6-07

Active

Schaffner EMC Inc.

LINE FILTER 250VAC 6A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 19.54
		10	$ 15.94
		25	$ 14.70
		40	$ 14.10
		80	$ 13.26
		230	$ 12.44

Description

General part information

FN2010 Series

Single Phase EMC/EMI Line Filter 6 A 250V DC ~ 400Hz Single Stage Wire Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FN2010A-6-07	FN2010 Series

Applications	Safety	General Purpose, Safety
Approval Agency	CSA, ENEC, UR	UR, CSA, ENEC, CE, CSA, ENEC, UR
Configuration	Single Stage	Single Stage
Current	6 A	1 - 60 A
Filter Type	Single Phase	Single Phase
Frequency - Operating	400 Hz	400 Hz
Inductance	1 mH	1 - 800 µH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Wire Leads	Quick Connect, Wire Leads, Threaded Post (M4), Threaded Post (M6)
Voltage - Rated AC	250 V	250 V
Voltage - Rated DC	-	250 V

FN2010 Series

LINE FILTER 250VDC/VAC 10A CHAS

Part	Configuration	Approval Agency	Operating Temperature [custom]	Current	Mounting Type	Voltage - Rated DC	Voltage - Rated AC	Filter Type	Inductance	Frequency - Operating	Applications	Termination Style
Schaffner EMC Inc. FN2010N1-10-06	Single Stage	CE, CSA, ENEC, UR	-25 °C, 100 °C	10 A	Chassis Mount	250 V	250 V	Single Phase	800 µH	400 Hz	General Purpose	Quick Connect
Schaffner EMC Inc. FN2010A-6-07	Single Stage	CSA, ENEC, UR	-25 °C, 100 °C	6 A	Chassis Mount		250 V	Single Phase	1 mH	400 Hz	Safety	Wire Leads
Schaffner EMC Inc. FN2010A-3-06	Single Stage	CSA, ENEC, UR	-25 °C, 100 °C	3 A	Chassis Mount		250 V	Single Phase	2.5 mH	400 Hz	Safety	Quick Connect
Schaffner EMC Inc. FN2010-30-08	Single Stage	CSA, ENEC, UR	-25 °C, 100 °C	30 A	Chassis Mount		250 V	Single Phase	700 µH	400 Hz	General Purpose	Threaded Post (M4)
Schaffner EMC Inc. FN2010-10-06	Single Stage	CSA, ENEC, UR	-25 °C, 100 °C	10 A	Chassis Mount		250 V	Single Phase	800 µH	400 Hz	General Purpose	Quick Connect
Schaffner EMC Inc. FN2010N1-3-06	Single Stage	CE, CSA, ENEC, UR	-25 °C, 100 °C	3 A	Chassis Mount	250 V	250 V	Single Phase	2.5 mH	400 Hz	General Purpose	Quick Connect
Schaffner EMC Inc. FN2010-3-06	Single Stage	CSA, ENEC, UR	-25 °C, 100 °C	3 A	Chassis Mount		250 V	Single Phase	2.5 mH	400 Hz	General Purpose	Quick Connect
Schaffner EMC Inc. FN2010-20-06	Single Stage	CSA, ENEC, UR	-25 °C, 100 °C	20 A	Chassis Mount		250 V	Single Phase	600 µH	400 Hz	General Purpose	Quick Connect
Schaffner EMC Inc. FN2010N1-1-06	Single Stage	CE, CSA, ENEC, UR	-25 °C, 100 °C	1 A	Chassis Mount	250 V	250 V	Single Phase	12 mH	400 Hz	General Purpose	Quick Connect
Schaffner EMC Inc. FN2010A-10-06	Single Stage	CSA, ENEC, UR	-25 °C, 100 °C	10 A	Chassis Mount		250 V	Single Phase	800 µH	400 Hz	Safety	Quick Connect
