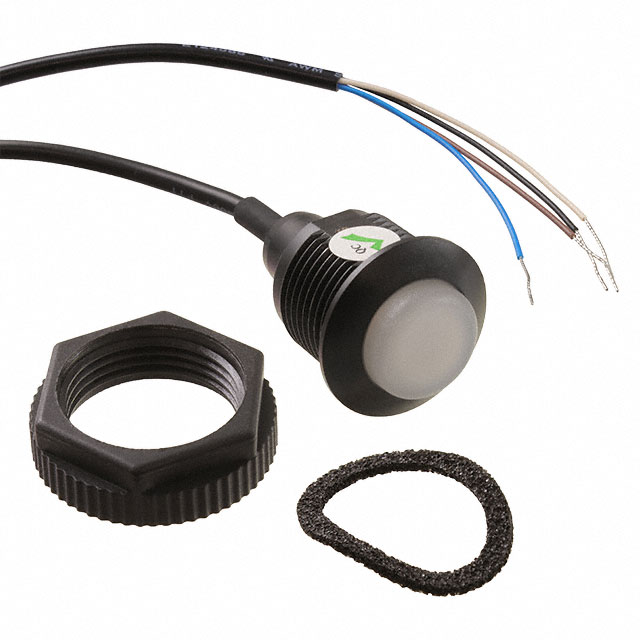

S22LGRYP

Active

BANNER ENGINEERING

EZ LIGHT INDICATOR GRN/RED/YEL

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EZ LIGHT INDICATOR GRN/RED/YEL

Technical Specifications

Parameters and characteristics for this part

Part	Lamp Color	Type	Ratings	Current	Voltage [Max]	Voltage [Min]	Lens Size [diameter]	Wavelength - Peak	Ingress Protection	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Panel Cutout Shape	Termination Style	Lens Transparency
BANNER ENGINEERING S22LGXXPQP	Green	LED	DC	25 mA	30 V	10 V	16 mm	528 nm	IP67 IP69K
BANNER ENGINEERING S22LGRXN	Green Red	LED	DC	25 mA	30 V	10 V	16 mm	528 nm 625 nm	IP67 IP69K
BANNER ENGINEERING S22LGRBPQ	Blue Green Red	LED	DC	25 mA	30 V	10 V	16 mm		IP67 IP69K	470 nm	625 nm	528 nm
BANNER ENGINEERING S22LGRYPT	Green Red Yellow	LED	DC	25 mA	30 V	10 V			IP67 IP69K NEMA 4X				0.866 in	22 mm	4.1 mcd	0.8 mcd	1.1 mcd	Round	Screw Terminal	Diffused
BANNER ENGINEERING S22LGRYP	Green Red Yellow	LED	DC	25 mA	30 V	10 V			IP67 IP69K NEMA 4X				0.866 in	22 mm	4.1 mcd	0.8 mcd	1.1 mcd	Round	Wire Leads	Diffused
BANNER ENGINEERING S22LGRXPQ	Green Red	LED	DC	25 mA	30 V	10 V			IP67 IP69K NEMA 4X				0.866 in	22 mm	4.1 mcd		1.1 mcd	Round	Quick Connect	Diffused
BANNER ENGINEERING S22LGRYPQ	Green Red Yellow	LED	DC	25 mA	30 V	10 V			IP67 IP69K NEMA 4X				0.866 in	22 mm	4.1 mcd	0.8 mcd	1.1 mcd	Round	Quick Connect	Diffused
BANNER ENGINEERING S22LGXXPT	Green	LED	DC	25 mA	30 V	10 V	16 mm	528 nm	IP67 IP69K										Screw Terminal
BANNER ENGINEERING S22LGXXP-803546	Green	LED	DC	25 mA	30 V	10 V	16 mm	528 nm	IP67 IP69K
BANNER ENGINEERING S22LGRWPQ	Green Red White	LED	DC	25 mA	30 V	10 V	16 mm	528 nm 625 nm	IP67 IP69K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.00
Newark	Each	1	$ 45.00

General part information

LED Panel Indicator Green, Red, Yellow Diffused 10V ~ 30V 25mA Wire Leads
