HE2AN-Q-DC24V

Active

Panasonic Electric Works

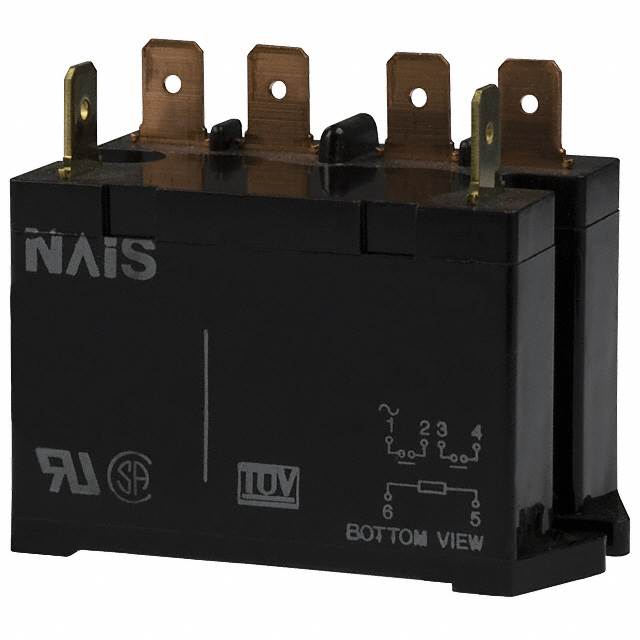

RELAY GEN PURPOSE DPST 25A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Standards Chart +2

HE2AN-Q-DC24V

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPST 25A 24V

Deep-Dive with AI

DocumentsDatasheet Standards Chart +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HE2AN-Q-DC24V

Approval Agency	CSA, TUV, VDE, UR
Coil Current	80 mA
Coil Resistance	300 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPST-NO (2 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	25 A
Load - Max Switching	6925 VA, 750 W
Mounting Type	Chassis Mount
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	30 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-50 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	277 VAC, 30 VDC
Termination Style	Quick Connect - 0.250" (6.3mm)

HE2AN Series

Part	Switching Voltage	Approval Agency	Release Time	Load - Max Switching	Must Operate Voltage	Coil Resistance	Termination Style	Contact Form	Contact Material	Operate Time	Coil Voltage	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Contact Rating (Current)	Relay Type	Coil Type	Mounting Type
Panasonic Electric Works HE2AN-S-AC240V	30 VDC 277 VAC	CSA TUV UR VDE	30 ms	750 W 6925 VA	168 VAC	22.22 kOhms	Screw Terminal	DPST-NO (2 Form A)	Silver Tin Oxide (AgSnO)	30 ms	240 VAC	10.8 mA	-50 °C	55 °C	36 VAC	25 A	General Purpose	Non Latching	Chassis Mount
Panasonic Electric Works HE2AN-Q-AC24V	30 VDC 277 VAC	CSA TUV UR VDE	30 ms	750 W 6925 VA	16.8 VAC	324.3 Ohms	Quick Connect - 0.250" (6.3mm)	DPST-NO (2 Form A)	Silver Tin Oxide (AgSnO)	30 ms	24 VAC	74 mA	-50 °C	55 °C	3.6 VAC	25 A	General Purpose	Non Latching	Chassis Mount
Panasonic Electric Works HE2AN-Q-DC110V	30 VDC 277 VAC	CSA TUV UR VDE	10 ms	750 W 6925 VA	77 VDC	6.3 kOhms	Quick Connect - 0.250" (6.3mm)	DPST-NO (2 Form A)	Silver Tin Oxide (AgSnO)	30 ms	110 VDC	17.5 mA	-50 °C	55 °C	11 VDC	25 A	General Purpose	Non Latching	Chassis Mount
Panasonic Electric Works HE2AN-S-AC120V	30 VDC 277 VAC	CSA TUV UR VDE	30 ms	750 W 6925 VA	84 VAC	5430 Ohms	Screw Terminal	DPST-NO (2 Form A)	Silver Tin Oxide (AgSnO)	30 ms	120 VAC	22.1 mA	-50 °C	55 °C	18 VAC	25 A	General Purpose	Non Latching	Chassis Mount
Panasonic Electric Works HE2AN-Q-AC240V	30 VDC 277 VAC	CSA TUV UR VDE	30 ms	750 W 6925 VA	168 VAC	26.37 kOhms	Quick Connect - 0.250" (6.3mm)	DPST-NO (2 Form A)	Silver Tin Oxide (AgSnO)	30 ms	240 VAC	9.1 mA	-50 °C	55 °C	36 VAC	25 A	General Purpose	Non Latching	Chassis Mount
Panasonic Electric Works HE2AN-S-DC6V	30 VDC 277 VAC	CSA TUV UR VDE	10 ms	750 W 6925 VA	4.2 VDC	18.8 Ohms	Screw Terminal	DPST-NO (2 Form A)	Silver Tin Oxide (AgSnO)	30 ms		320 mA	-50 °C	55 °C	0.6 VDC	25 A	General Purpose	Non Latching	Chassis Mount
Panasonic Electric Works HE2AN-Q-DC24V	30 VDC 277 VAC	CSA TUV UR VDE	10 ms	750 W 6925 VA	16.8 VDC	300 Ohms	Quick Connect - 0.250" (6.3mm)	DPST-NO (2 Form A)	Silver Tin Oxide (AgSnO)	30 ms	24 VDC	80 mA	-50 °C	55 °C	2.4 VDC	25 A	General Purpose	Non Latching	Chassis Mount
Panasonic Electric Works HE2AN-SW-DC110V	30 VDC 277 VAC	CSA TUV UR VDE	10 ms	750 W 6925 VA	77 VDC	6.3 kOhms	Screw Terminal	DPST-NO (2 Form A)	Silver Tin Oxide (AgSnO)	30 ms	110 VDC	17.5 mA	-50 °C	55 °C	11 VDC	25 A	General Purpose	Non Latching	Chassis Mount
Panasonic Electric Works HE2AN-AC24V	30 VDC 277 VAC	CSA TUV UR VDE	30 ms	750 W 6925 VA	16.8 VAC	324.3 Ohms	Plug In Quick Connect - 0.250" (6.3mm)	DPST-NO (2 Form A)	Silver Tin Oxide (AgSnO)	30 ms	24 VAC	74 mA	-50 °C	55 °C	3.6 VAC	25 A	General Purpose	Non Latching	Chassis Mount
Panasonic Electric Works HE2AN-Q-DC6V	30 VDC 277 VAC	CSA TUV UR VDE	10 ms	750 W 6925 VA	4.2 VDC	18.8 Ohms	Quick Connect - 0.250" (6.3mm)	DPST-NO (2 Form A)	Silver Tin Oxide (AgSnO)	30 ms		320 mA	-50 °C	55 °C	0.6 VDC	25 A	General Purpose	Non Latching	Chassis Mount
