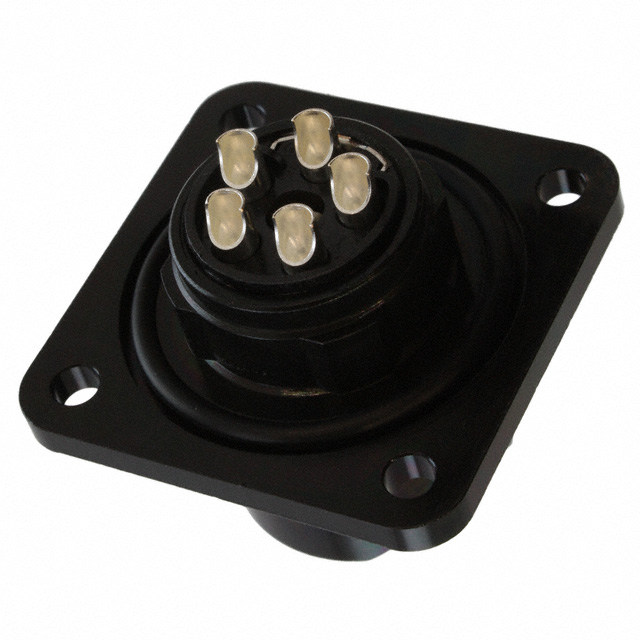

JN2AW05FH1

Active

JAE Electronics

CONN RCPT FMALE 5P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT FMALE 5P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Connector Type	Orientation	Shell Finish	Contact Finish - Mating	Number of Positions	Shell Size - Insert	Contact Material	Shell Material	Primary Material	Mounting Feature	Ingress Protection	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Insert Material	Features	Fastening Type	Color
JAE Electronics JN2AW05FH1	13 A	Receptacle Female Sockets	N	Zinc	Silver	5	W	Copper Alloy	Zinc Alloy	Metal	Flange	IP67 - Dust Tight Waterproof	Industrial	100 °C	-20 C	400 VAC	Synthetic Resin	Ground Lug	Push-Twist	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 (4 Power + PE) Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

No documents available
