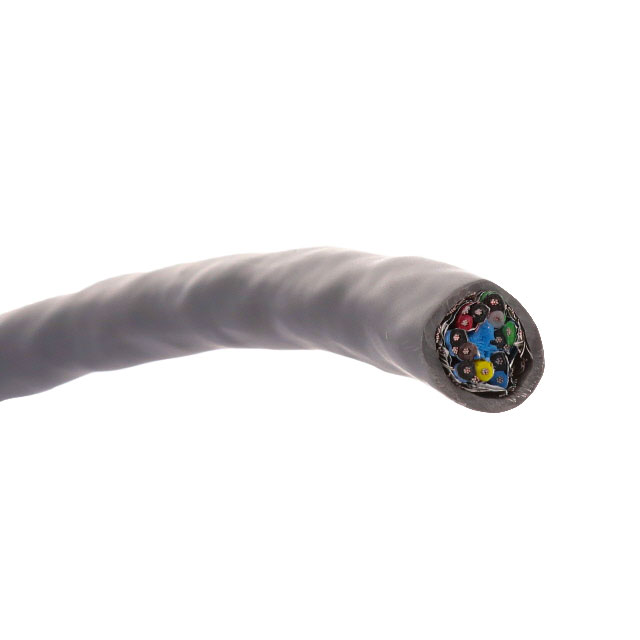

8166 060100

Active

Belden Inc.

MULTI-PAIR 12COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 12COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8166 060100

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	11.33 mm
Jacket (Insulation) Diameter [diameter]	0.446 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 2493
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Number of Conductors	Conductor Material	Jacket Color	Jacket (Insulation) Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Shield Type	Shield Material	Length [x]	Length [x]	Ratings	Features	Cable Type	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 8166 060100	12	Copper Tinned	Chrome	Poly-Vinyl Chloride (PVC)	Computer	0.048 in	1.219 mm	32 AWG	7	24 AWG	11.33 mm	0.446 in	65 % 100 %	Braid Foil	Aluminum Copper Tinned	30.5 m	100 ft	UL Style 2493	Drain Wire	Multi-Pair	Foam Polyethylene (FPE)	-40 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 (6 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 100.0' (30.5m)
