MIC5219-2.85YMM

Active

Microchip Technology

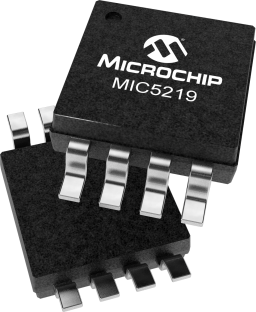

500MA PEAK 1% LOW NOISE LDO 8 MSOP 3X3MM TUBE ROHS COMPLIANT: YES

Find alt

Alpha

MIC5219-2.85YMM

Active

Microchip Technology

500MA PEAK 1% LOW NOISE LDO 8 MSOP 3X3MM TUBE ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MIC5219 Series

The MIC5219 is an efficient linear voltage regulator with high peak output current capability, very-low dropout voltage, and better than 1% output voltage accuracy. Dropout is typically 10mV at light loads and less than 500mV at full load.

The MIC5219 is designed to provide a peak output current for start-up conditions where higher in-rush current is demanded. It features a 500mA peak output rating. Continuous output current is limited only by package and layout.

The MIC5219 can be enabled or shut down by a CMOS- or TTL-compatible signal. When disabled, power consumption drops to nearly zero. Dropout ground current is minimized to help prolong battery life. Other key features include reversed battery protection, current limiting, over-temperature shutdown, and low noise performance with an ultra-low noise option.

Technical Specifications

Parameters and characteristics for this part

Specification	MIC5219-2.85YMM

Control Features	Enable
Current - Output	500 mA
Current - Quiescent (Iq)	8 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Fixed
Package Length	0.118 in
Package Name	8-MSOP, 8-TSSOP, 8-MSOP
Package Width	3 mm
Protection Features	Over Temperature, Reverse Polarity, Over Current
PSRR	75 dB
Voltage - Input (Max)	12 V
Voltage - Output (Min/Fixed)	2.85 V
Voltage Dropout (Max)	0.6 V

MIC5219 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Output Type	Output Configuration	Number of Regulators	Voltage - Input (Max)	PSRR	Protection Features	Voltage Dropout (Max)	Package Name	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Control Features	Current - Output	Package Width	Package Length	Voltage - Output (Min/Fixed)
Microchip Technology MIC5219-3.1YM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	3.1 V	Enable	500 mA
Microchip Technology MIC5219-2.9BM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	2.9 V	Enable	500 mA
Microchip Technology MIC5219-5.0YMM-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	8-MSOP 8-TSSOP 8-MSOP	8 µA	5 V	Enable	500 mA	3 mm	0.118 in
Microchip Technology MIC5219-2.7YM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	2.7 V	Enable	500 mA
Microchip Technology MIC5219-3.0YM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	3 V	Enable	500 mA
Microchip Technology MIC5219YM5-TR	125 °C	-40 °C	Surface Mount	Adjustable	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA		Enable	500 mA			Adjustable
Microchip Technology MIC5219-3.3YMM-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	8-MSOP 8-TSSOP 8-MSOP	8 µA	3.3 V	Enable	500 mA	3 mm	0.118 in
Microchip Technology MIC5219-3.6BM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	3.6 V	Enable	500 mA
Microchip Technology MIC5219YM5-T5	125 °C	-40 °C	Surface Mount	Adjustable	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA		Enable	500 mA			Adjustable
Microchip Technology MIC5219-3.3BM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	3.3 V	Enable	500 mA
