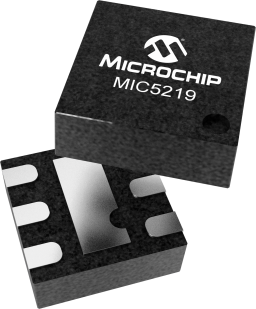

MIC5219 Series

Catalog

500MA PEAK 1% LOW NOISE LDO 5 SOT-23 T/R ROHS COMPLIANT: YES

Part	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Output Type	Output Configuration	Number of Regulators	Voltage - Input (Max)	PSRR	Protection Features	Voltage Dropout (Max)	Package Name	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Control Features	Current - Output	Package Width	Package Length	Voltage - Output (Min/Fixed)
Microchip Technology MIC5219-3.1YM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	3.1 V	Enable	500 mA
Microchip Technology MIC5219-2.9BM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	2.9 V	Enable	500 mA
Microchip Technology MIC5219-5.0YMM-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	8-MSOP 8-TSSOP 8-MSOP	8 µA	5 V	Enable	500 mA	3 mm	0.118 in
Microchip Technology MIC5219-2.7YM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	2.7 V	Enable	500 mA
Microchip Technology MIC5219-3.0YM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	3 V	Enable	500 mA
Microchip Technology MIC5219YM5-TR	125 °C	-40 °C	Surface Mount	Adjustable	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA		Enable	500 mA			Adjustable
Microchip Technology MIC5219-3.3YMM-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	8-MSOP 8-TSSOP 8-MSOP	8 µA	3.3 V	Enable	500 mA	3 mm	0.118 in
Microchip Technology MIC5219-3.6BM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	3.6 V	Enable	500 mA
Microchip Technology MIC5219YM5-T5	125 °C	-40 °C	Surface Mount	Adjustable	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA		Enable	500 mA			Adjustable
Microchip Technology MIC5219-3.3BM5-TR	125 °C	-40 °C	Surface Mount	Fixed	Positive	1	12 V	75 dB	Over Current Over Temperature Reverse Polarity	0.6 V	SOT-23-5	8 µA	3.3 V	Enable	500 mA
